Rear Brake Caliper: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Deactivate the electronic parking brake system prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.

Refer ELECTRONIC PARKING BRAKE (EPB) SERVICE MODE ACTIVATION AND DEACTIVATION .
Refer to: WHEEL AND TIRE .

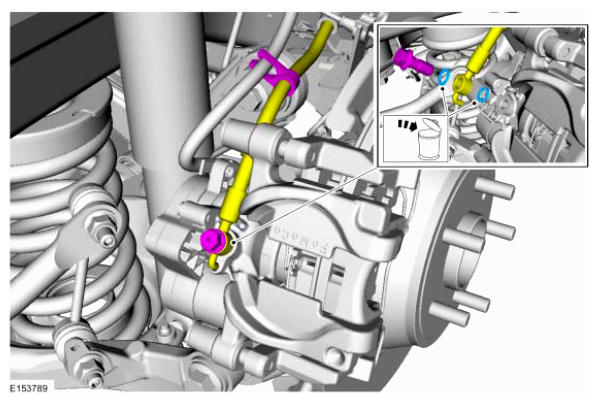

Torque : 25 Nm

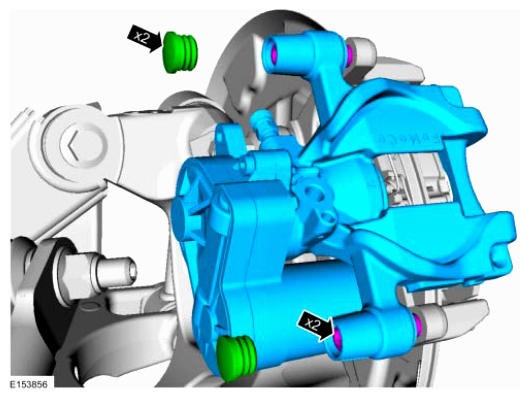

Torque : 28 Nm
