Front Brake Pads: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: WHEEL AND TIRE .
  3. G08637400
  4. NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.
    NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Relocate and support the component.

    Torque  : 30 Nm

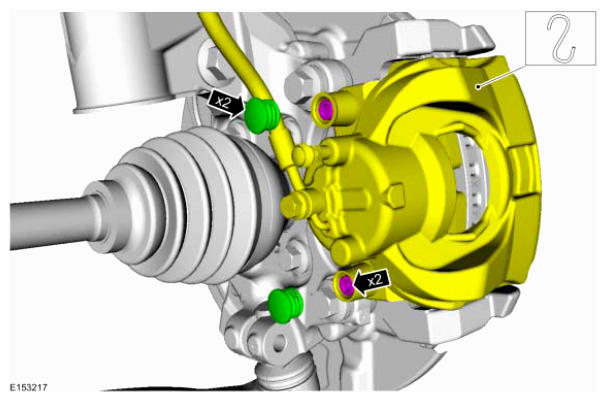

    G08637404

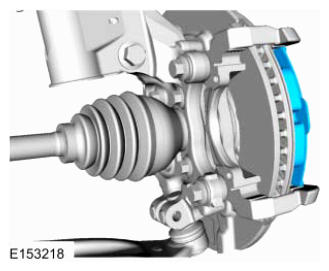

  5. G08637405

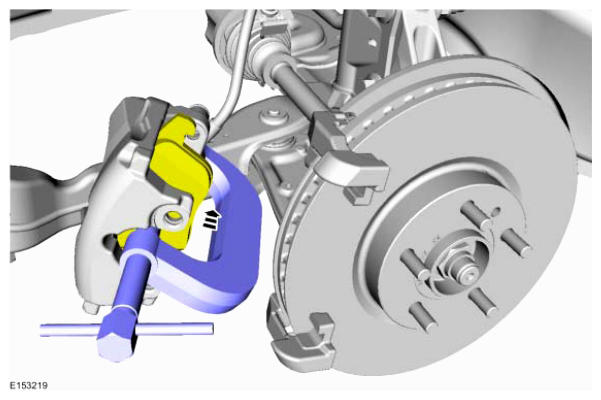

  6. G08637406

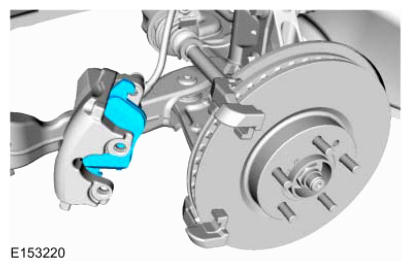

  7. G08637407
