Front Brake Caliper Anchor Plate: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: WHEEL AND TIRE .
  2. G08637400
  3. NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.
    NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Relocate and support the component.

    Torque  : 30 Nm

    G08637404
  4. G08637405

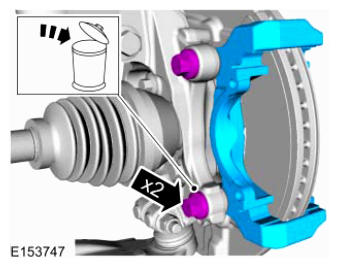

  5. Discard the specified component. Follow local disposal regulations.

    Torque  : 150 Nm

    G08637413
