Rear Door Window Regulator: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the rear door speaker.

    Refer to: REAR DOOR SPEAKER .

    Refer to: REAR DOOR SPEAKER .

    Refer to: REAR DOOR SPEAKER .

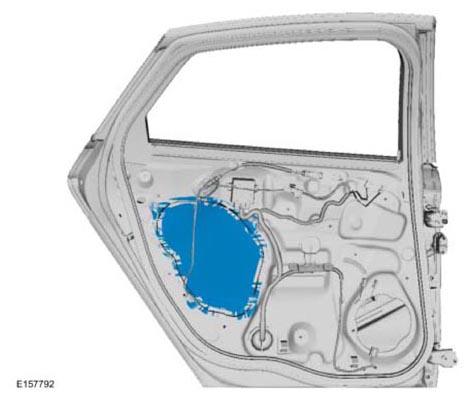

  3. Remove the watershield.
    G08634856

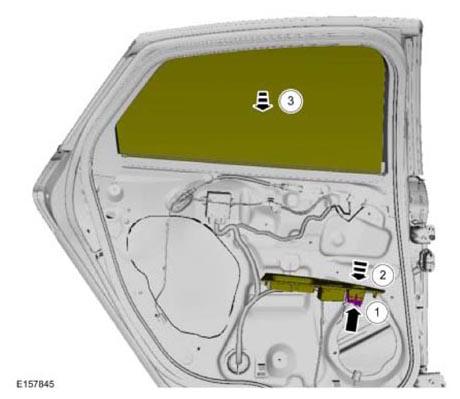

  4. G08634857

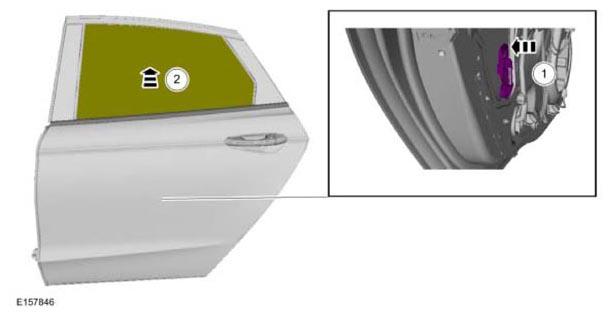

  5. G08634858

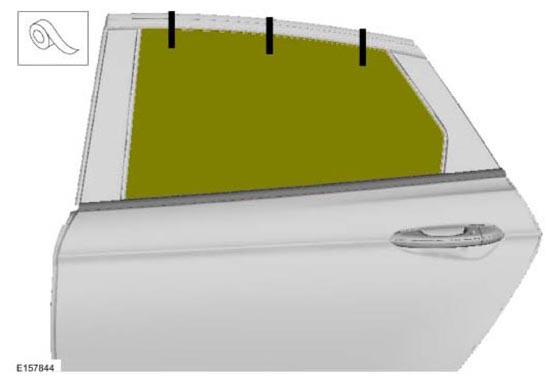

  6. General Equipment  : Adhesive Tape
    G08634902

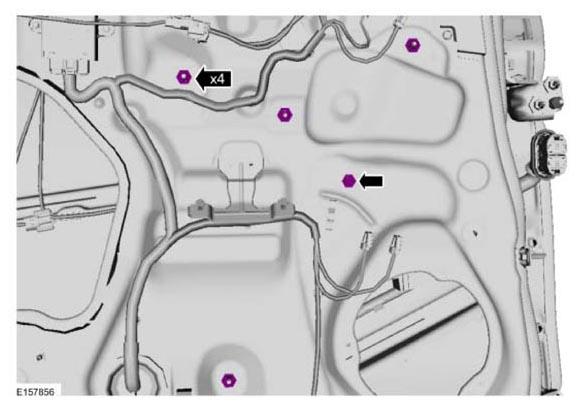

  7. Torque  : 10.5 Nm
    G08634903

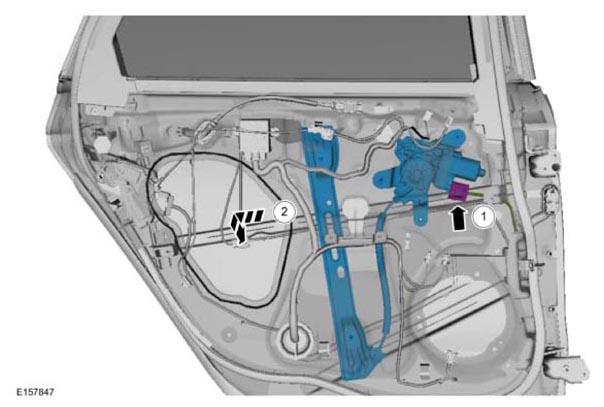

  8. G08634904
