Rear Door Window Glass: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: REAR DOOR TRIM PANEL .
  3. Refer to: REAR DOOR UPPER MOULDING .

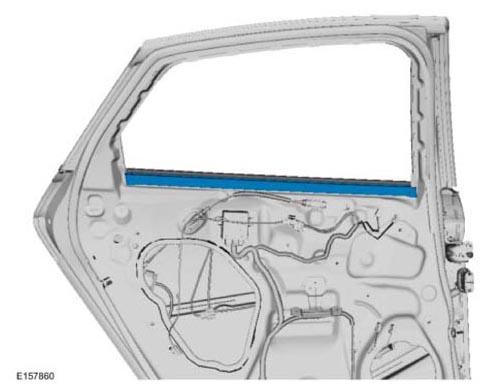

  4. G08634854
  5. G08634855
  6. G08634856
  7. G08634857
  8. G08634858
  9. G08634859
