Rear Door Glass Top Run: Removal

NOTE: LH  side shown, RH  side similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: REAR DOOR WINDOW GLASS  .
  3. G08634855

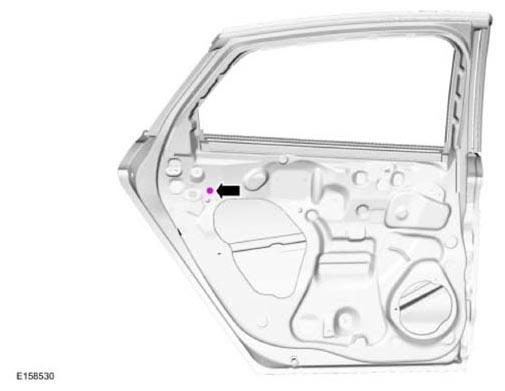

  4. Torque  : 10 Nm
    G08634907

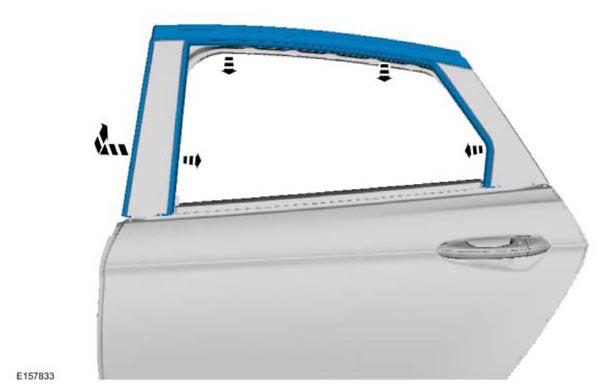

  5. G08634908
