Rear Seat Backrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The 40 percent backrest must be removed to allow removal of the 60 percent backrest.

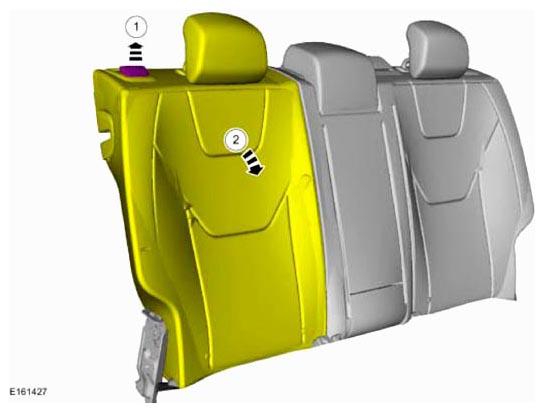

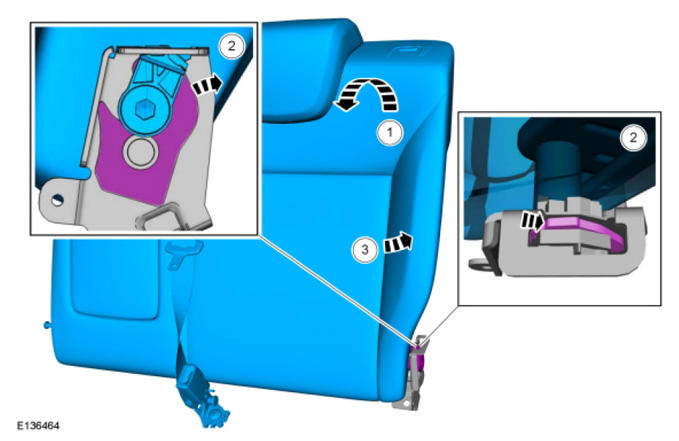

All backrests

Refer to: REAR SEAT CUSHION .

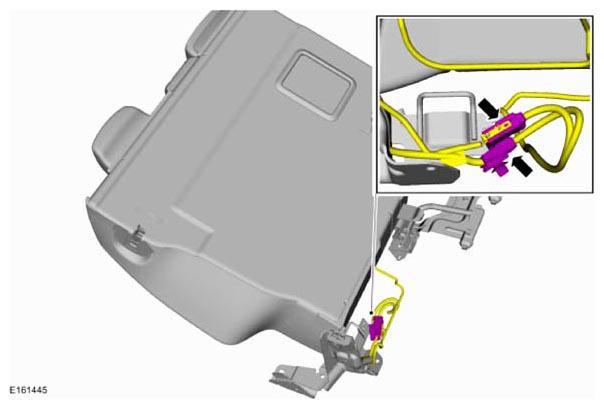

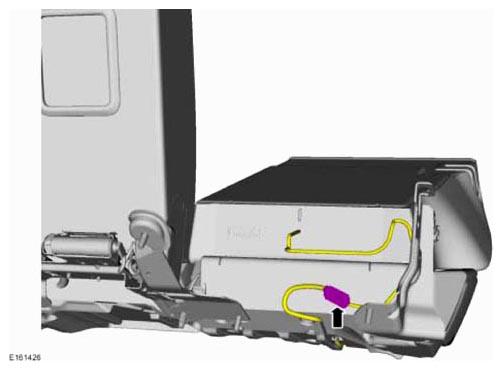

If equipped with heated seats.

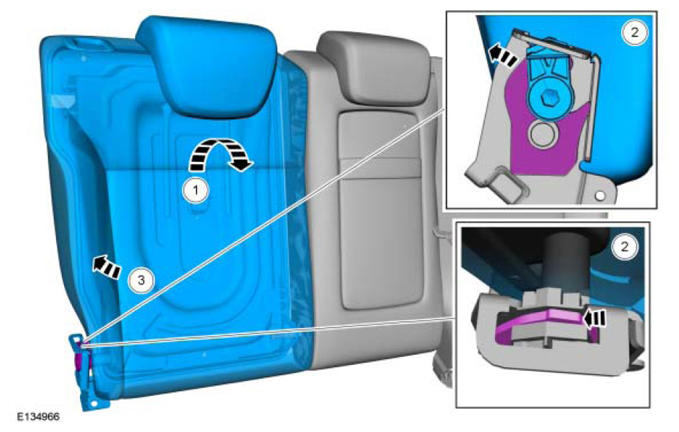

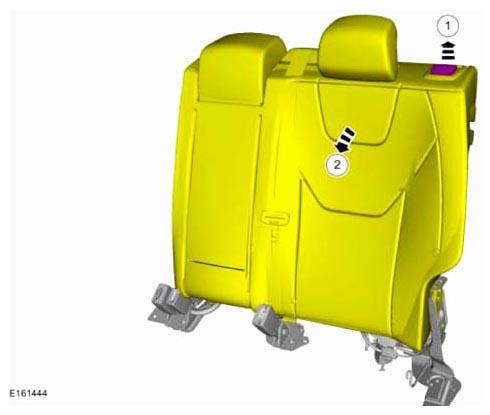

60 percent backrest

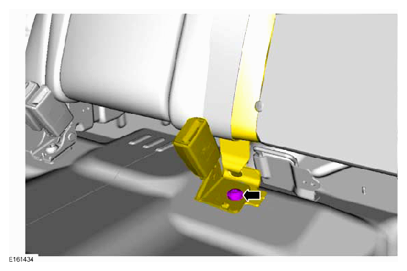

If equipped with conventional safety belts.
Torque : 48 Nm

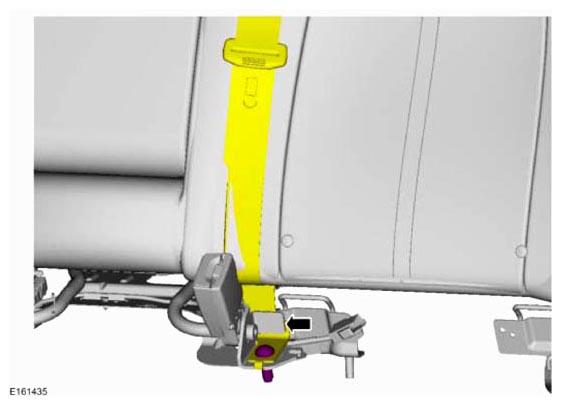

If equipped with inflatable safety belts.
Torque : 48 Nm
If equipped with heated seats.
