Rear Bumper: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the rear bumper cover.

    Refer to: REAR BUMPER COVER  .

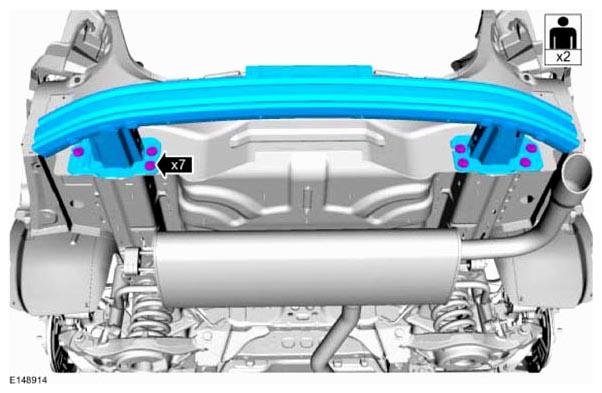

  3. Torque  : 30 Nm
    G08637945
