Rear Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the rear wheel and tire assemblies.

    Refer to: WHEEL AND TIRE .

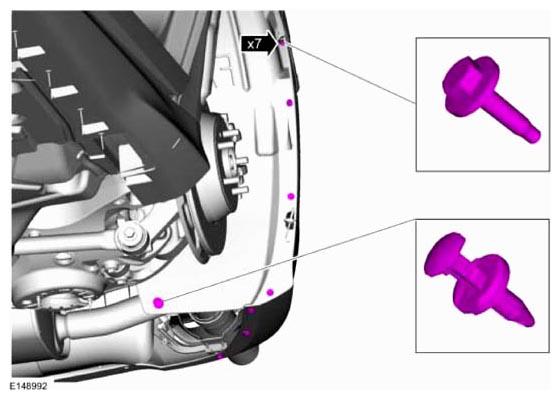

  3. On each side.

    Torque  : 1.5 Nm

    G08637931

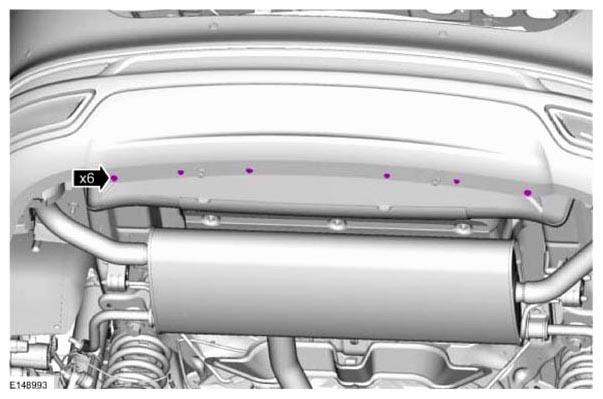

  4. Torque  : 1.5 Nm
    G08637932
  5. Remove the rear lamp assemblies.

    Refer to: REAR LAMP ASSEMBLY - VEHICLES WITH: 4-DOOR .

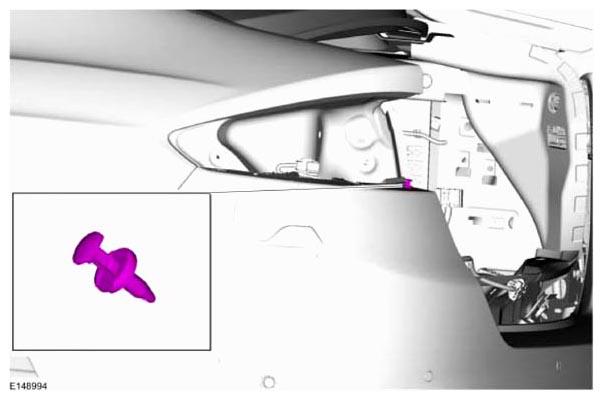

  6. On each side.
    G08637933

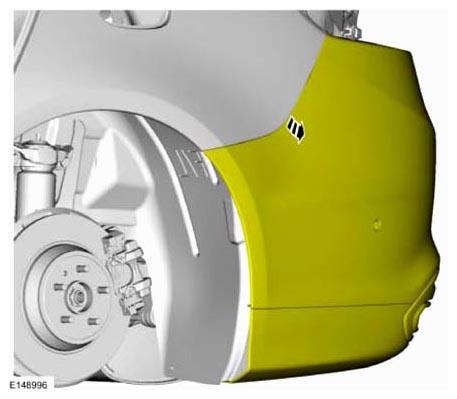

  7. On each side.
    G08637934

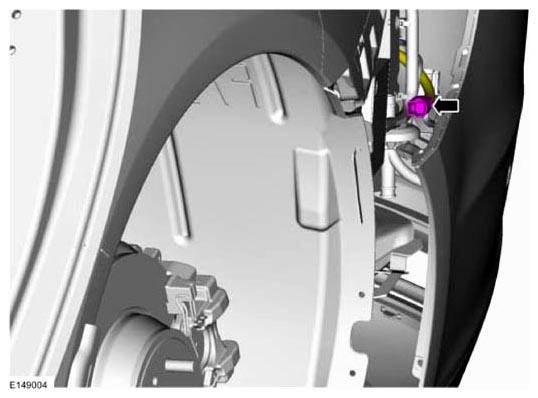

  8. G08637935

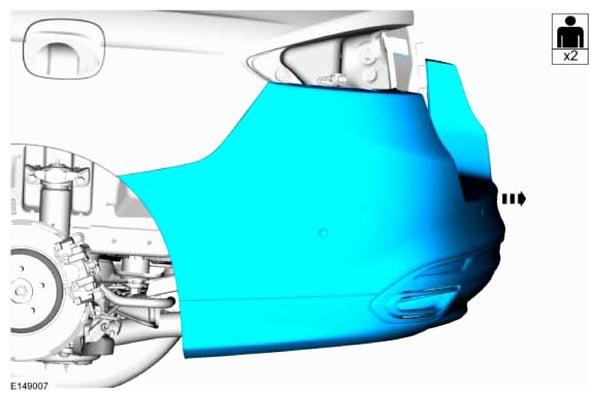

  9. G08637936

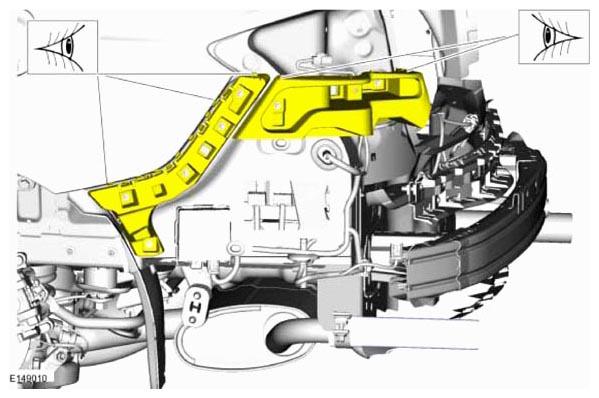

  10. NOTE: On each side.

    Inspect the bumper reinforcements for damage to the bumper cover gripping surfaces.

    G08637937

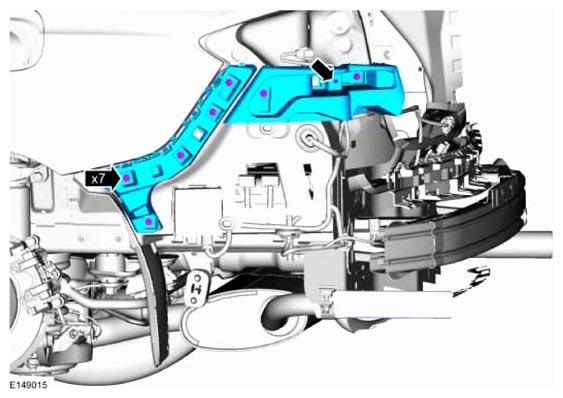

  11. If required.

    Torque  : 1.5 Nm

    G08637938
