Front Bumper: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the front bumper cover.

    Refer to: FRONT BUMPER COVER  .

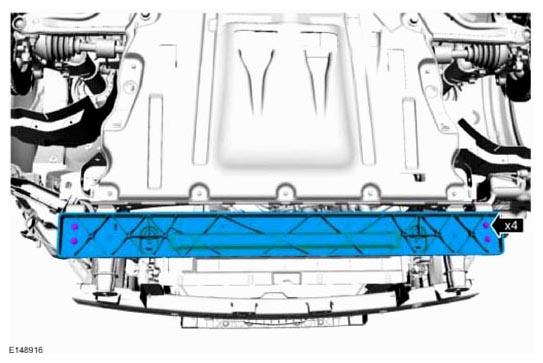

  3. Torque  : 20 Nm
    G08637939

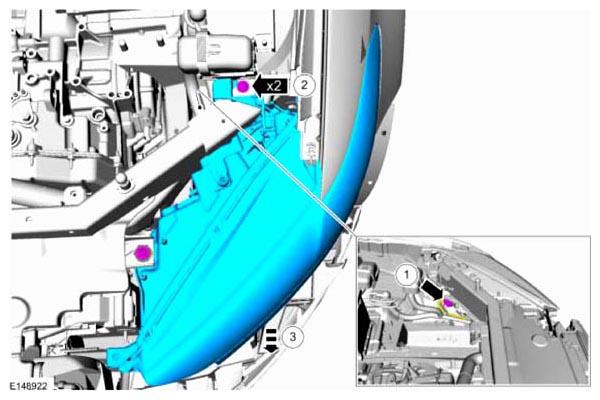

  4. On each side.

    Torque  : 4.1 Nm

    G08637940
  5. Remove the active grille shutters.

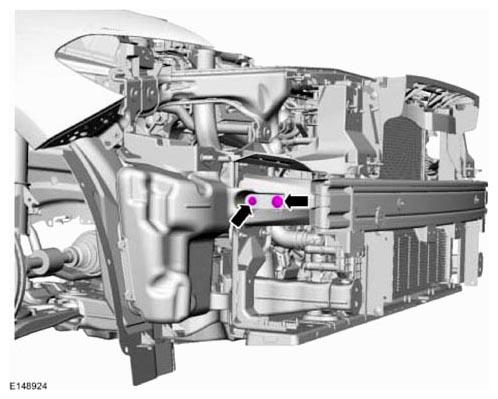

  6. On each side.

    Torque  : 6 Nm

    G08637941

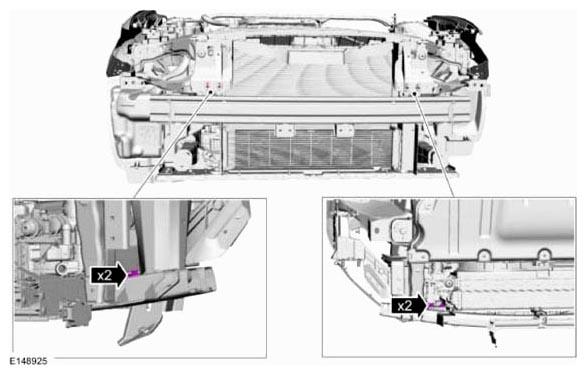

  7. Torque  : 20 Nm
    G08637942

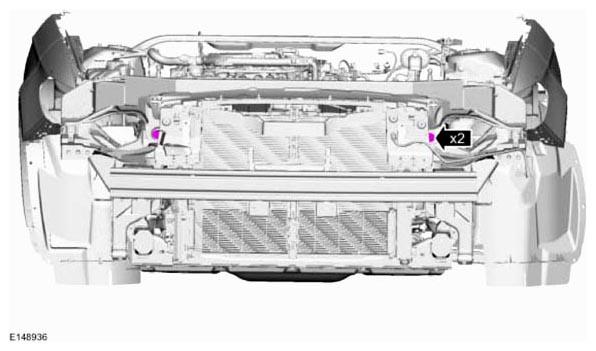

  8. Torque  : 24 Nm
    G08637943

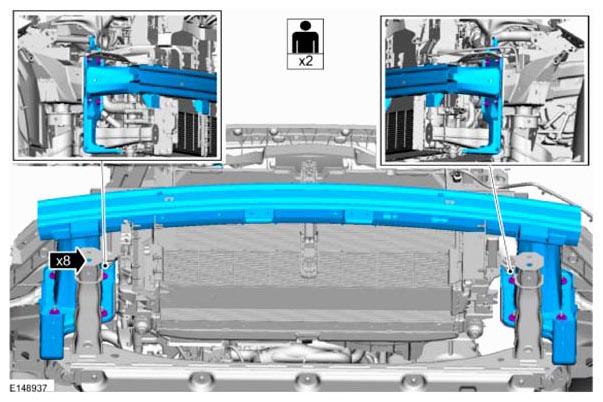

  9. Torque  : 24 Nm
    G08637944
