Front Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the front wheel and tire assemblies.
  3. On each side.

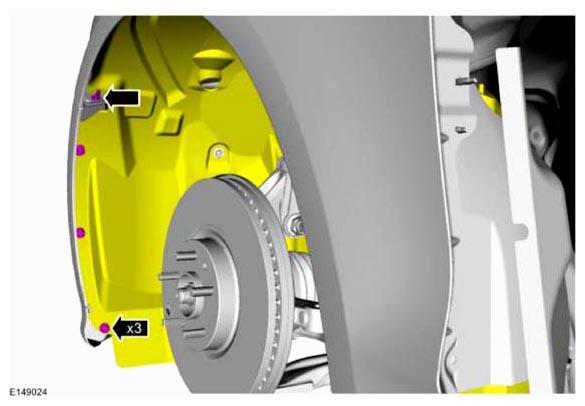

    G08637923

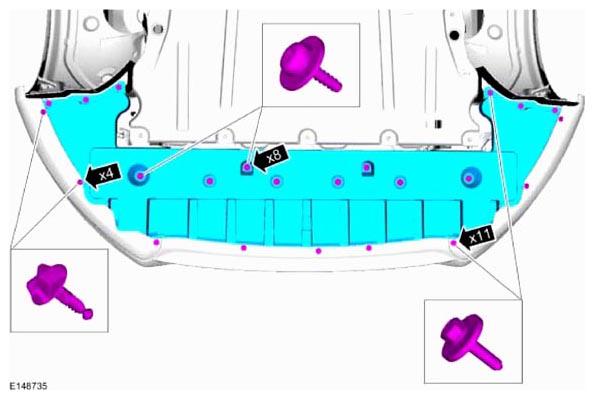

  4. G08633736

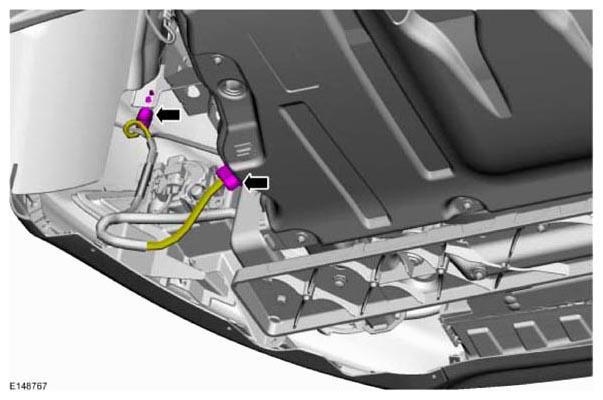

  5. G08637925

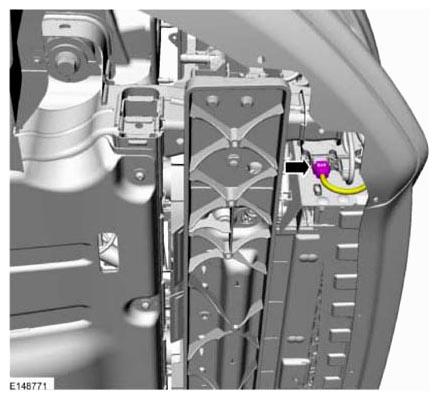

  6. G08637926

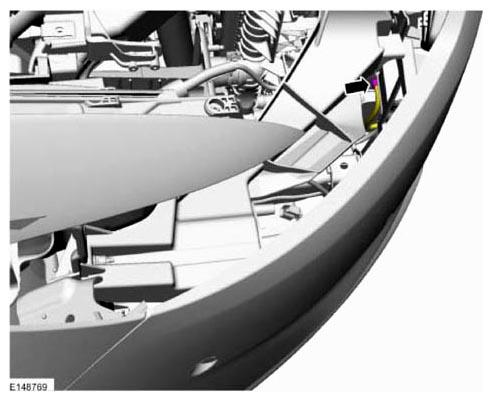

  7. NOTE: Headlamp removed for clarity.
    G08637927

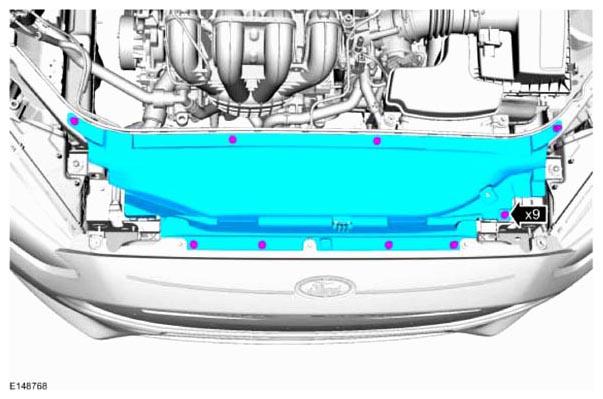

  8. G08637928

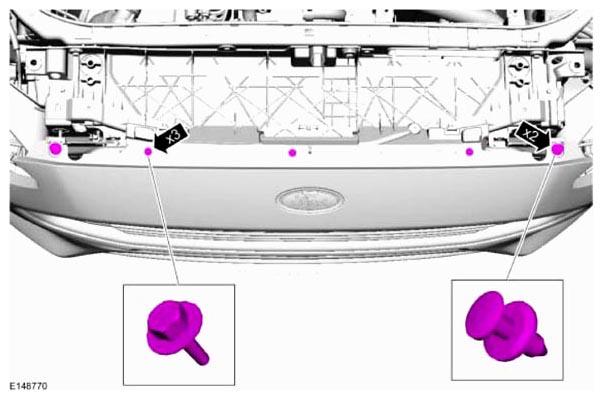

  9. G08637929

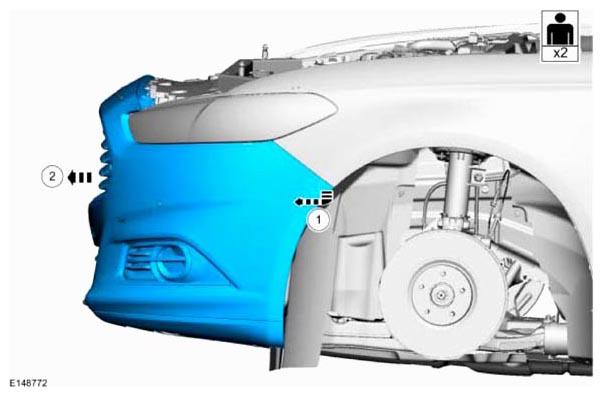

  10. G08637930
