Removal and Installation: Fender: Removal

NOTE: LH  side shown in illustration, RH  side similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: FENDER SPLASH SHIELD  .
  3. Refer to: ROCKER PANEL MOULDING .
  4. Torque  : 9 Nm

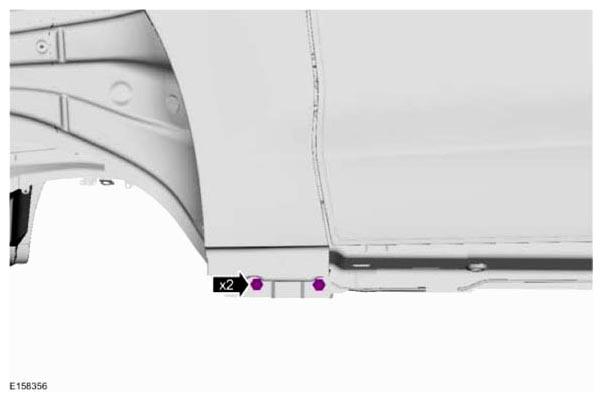

    G08637817

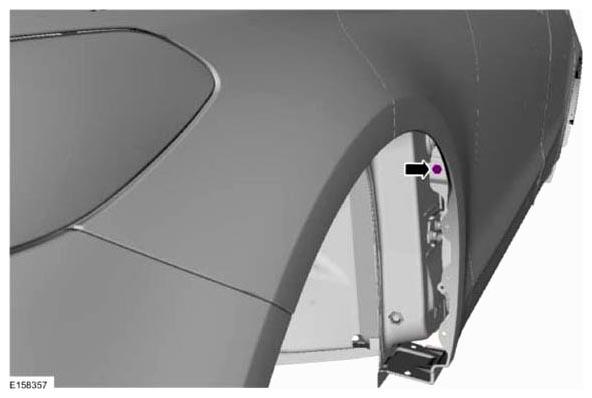

  5. Torque  : 9 Nm
    G08637818

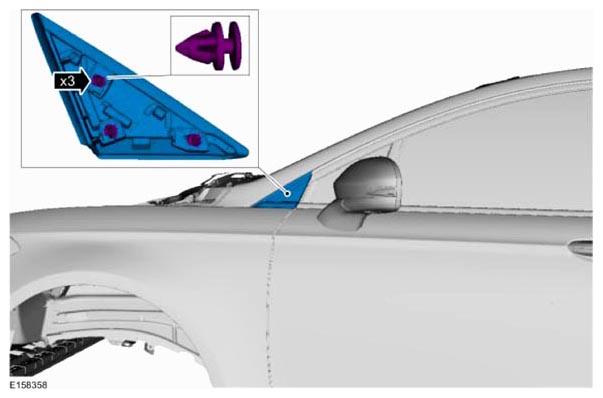

  6. G08637819

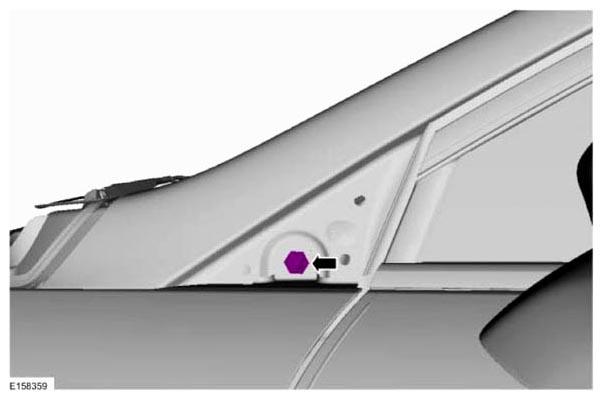

  7. Torque  : 9 Nm
    G08637820
  8. NOTE: Bumper cover removed for clarity.
    1. Torque  : 6 Nm
    2. Torque  : 9 Nm

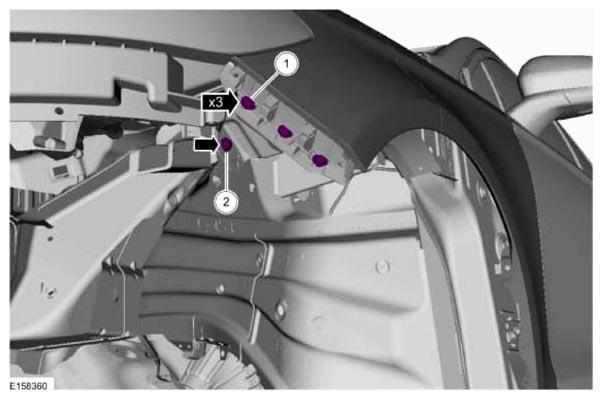

      G08637821

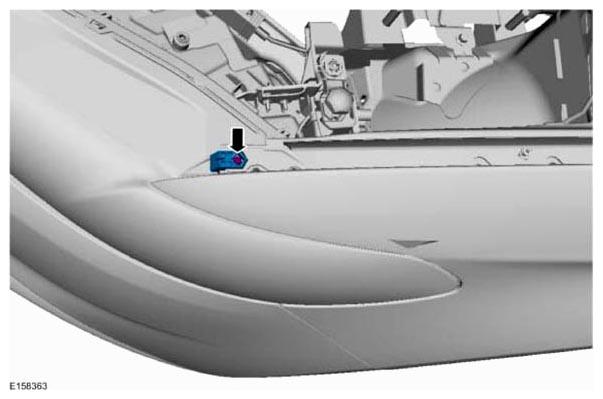

  9. G08637822

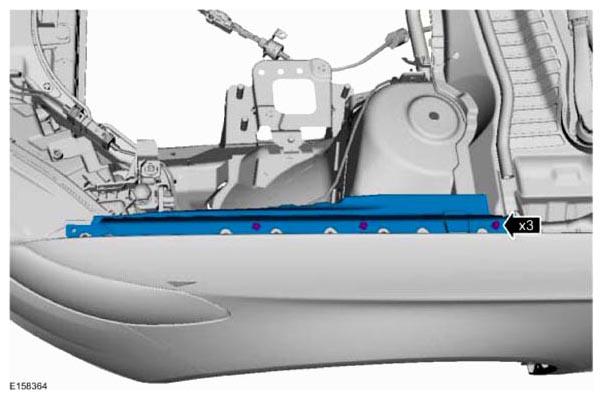

  10. G08637823

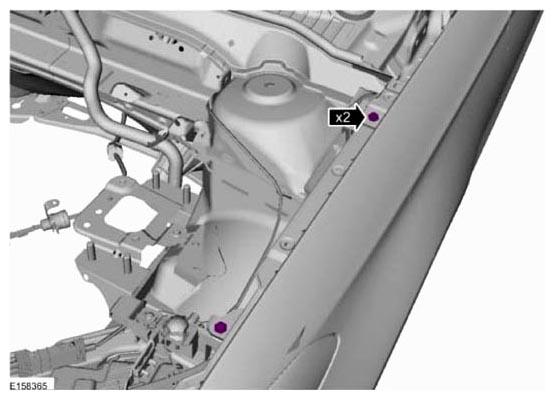

  11. Torque  : 9 Nm
    G08637824

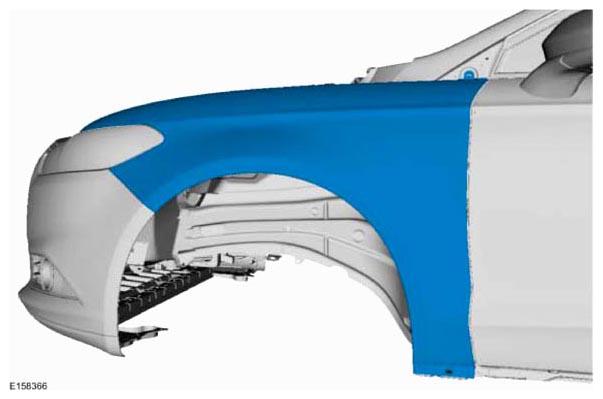

  12. G08637825
