Fender Splash Shield: Removal

NOTE: LH (left-hand) side shown in illustration, RH (right-hand) side similar.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: WHEEL AND TIRE .

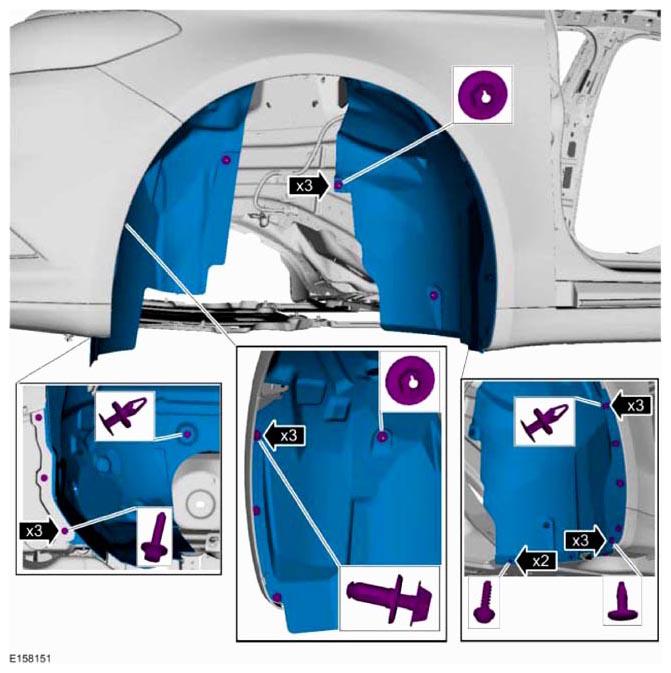

  3. G08637816
