Active Grille Shutter: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: FRONT BUMPER COVER .
  3. If equipped.

    Refer to: CHARGE AIR COOLER (CAC) - 1.6L EcoBoost (132kW/180PS) - Sigma .

    Refer to: CHARGE AIR COOLER (CAC) - 2.0L EcoBoost (184kW/250PS) - MI4 .

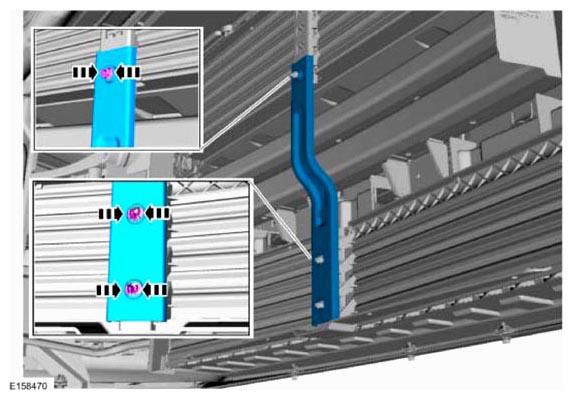

  4. G08637813
  5. On both sides.

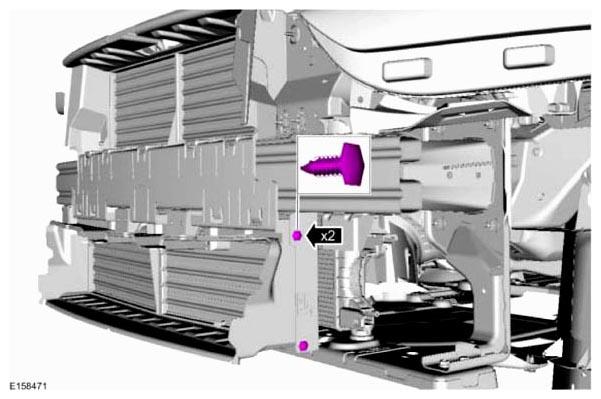

    G08637814
  6. Torque  : 6 Nm

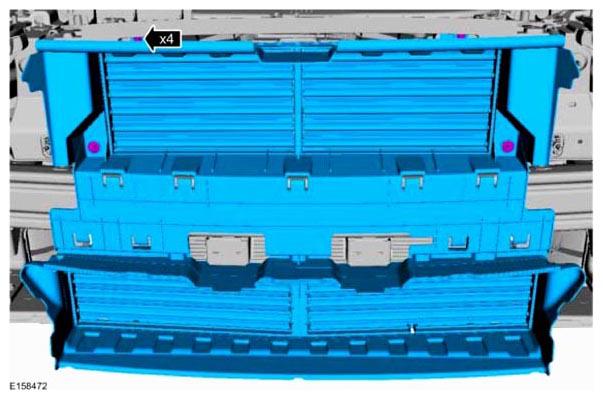

    G08637815
