Luggage Compartment Lid: Removal

1. 1.

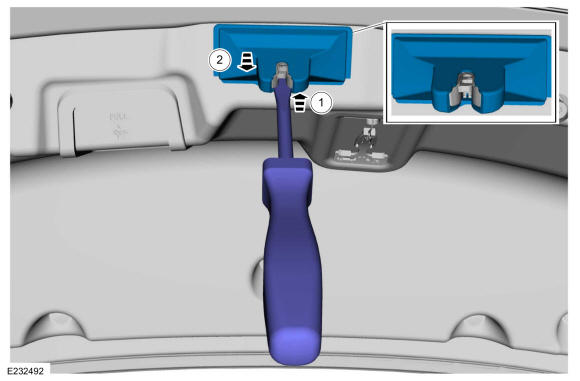

   Insert a flat blade screwdriver between the luggage compartment lid latch cover and luggage compartment lid latch.

1. 2.

   Remove the luggage compartment lid latch cover while gently prying the cover away from the luggage compartment lid latch disengaging the luggage compartment lid latch cover from the tab on luggage compartment lid latch. Use the General Equipment: Flat-Bladed Screwdriver

1. 1.

   Position aside the luggage compartment lid pull handle cover.

1. 2.

   Remove the trim cover.

1. 3.

   Remove the screws and the luggage compartment pull handle.

1. 1.

   Remove the pin-type retainers.

1. 2.

   Remove the trim panel, passing the emergency release handle through the trim panel opening.

Torque: 89 lb.in (10 Nm)
