Active Park Assist Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the console top trim panel.

    Refer to: FLOOR CONSOLE .

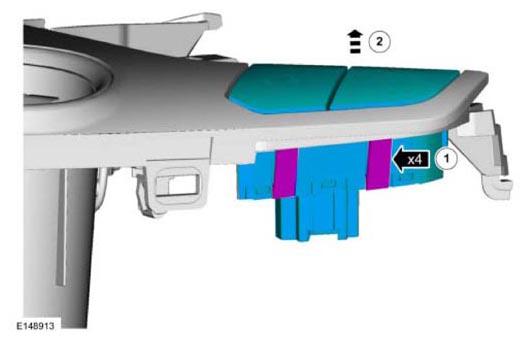

  3. Two on each side.
    G08634473
