Rear Head Restraint Guide Sleeve: Removal

NOTE: 60 percent seat shown in illustration, 40 percent seat similar.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

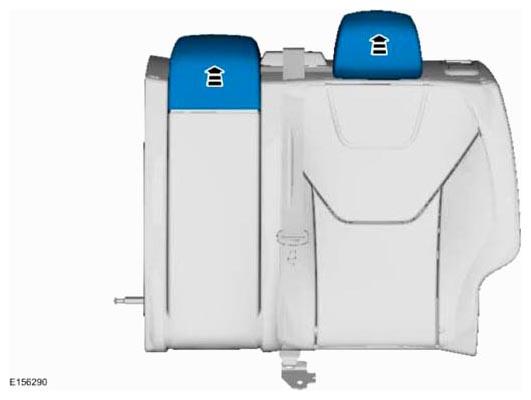

  2. NOTE: 60 percent seat backrest shown in illustration, 40 percent, and full seat backrest similar.
    G08637868

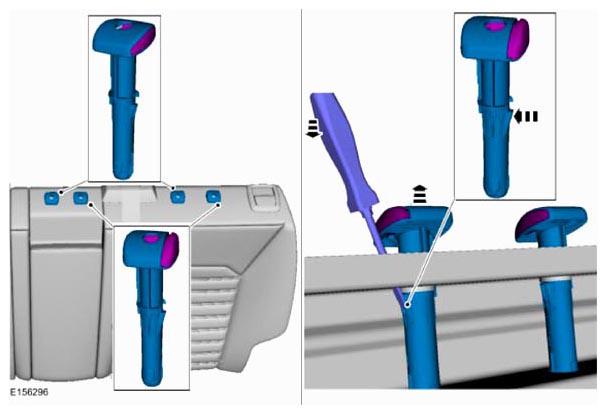

  3. NOTE: Trim cover removed for clearity.

    General Equipment  : Flat Headed Screw Driver

    G08637869
