Front Seat: Removal
NOTE:

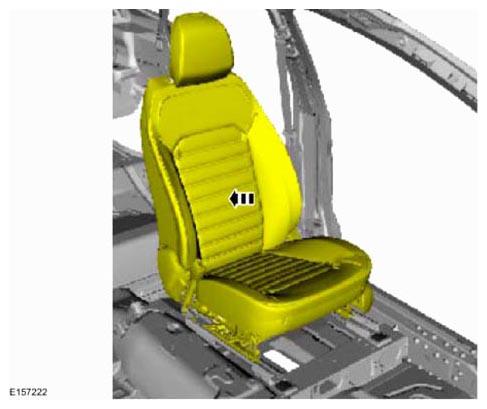

Driver seat shown in illustration, passenger seat similar.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.
Refer to: HEALTH AND SAFETY PRECAUTIONS .
-
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
Turn the ignition OFF and wait at least one minute.
- If a seat side airbag SRS fault is present, depower the SRS
.
Refer to: SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
