Front Seat Track: Removal

NOTE: Note the wire harness routing for installation purposes.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  3. Refer to: FRONT SEAT BACKREST  .
  4. Refer to: FRONT SEAT CUSHION COVER  .
  5. NOTE: Passenger seat only.

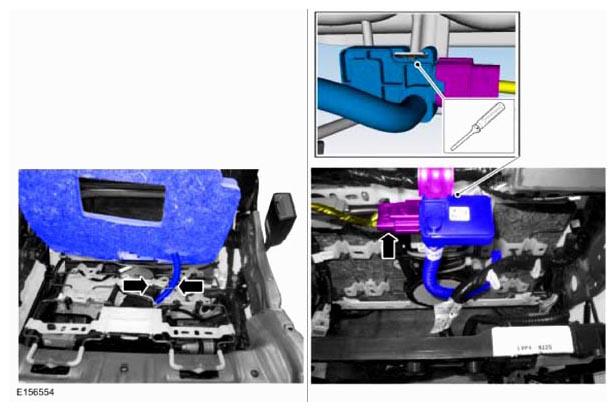

    Detach the front pin-type retainers, lift the bladder and feed the OCS hose and sensor out from between the seat cushion support wires.

    G08100537
  6. G08638820
