Front Seat Cushion Cover: Removal

  1. Refer to: FRONT SEAT  .

    Manual seat

  2. G08638766
  3. G08638777

    Power seat

  4. G08638754
  5. G08638770

    All seats

  6. G08638771

    Heated seats

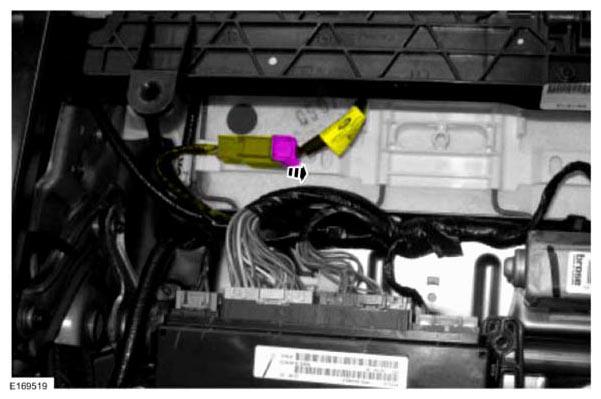

  7. G08638803

    All seats

  8. NOTE: Vehicles with power and heated seats shown in illustration, all others similar.
    G08638772
  9. On both sides.
    G08638773

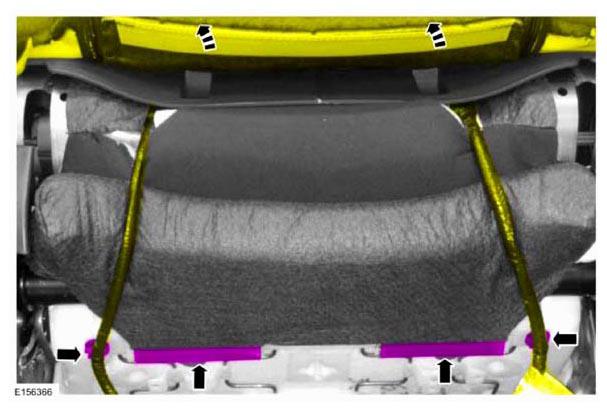

  10. G08638806

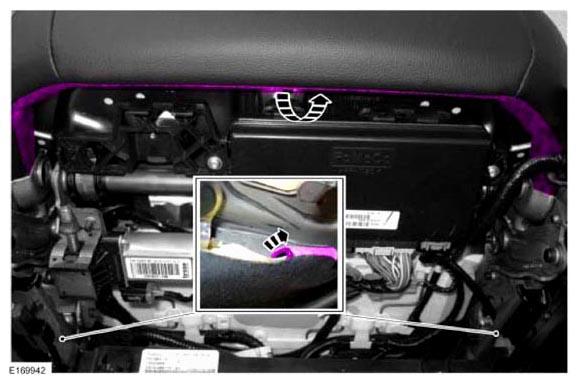

  11. G08638807

    Driver seat and passenger seat with OEM (Original Equipment Manufacturer) OCS (Occupant Classification System)

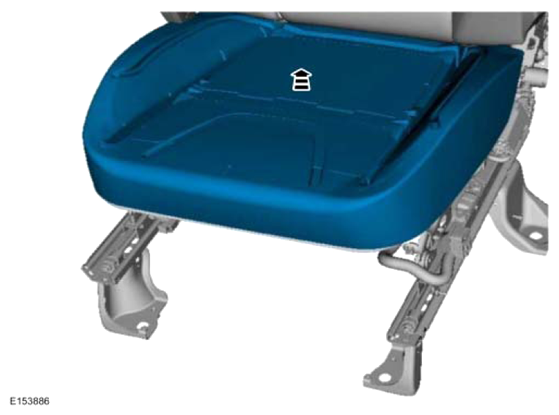

  12. G08410238

    OCS service kit

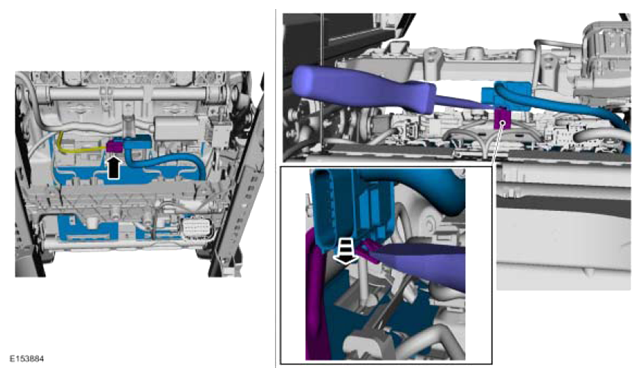

  13. NOTE: Follow the unique instructions or graphic for this step in installation.
    G08410236

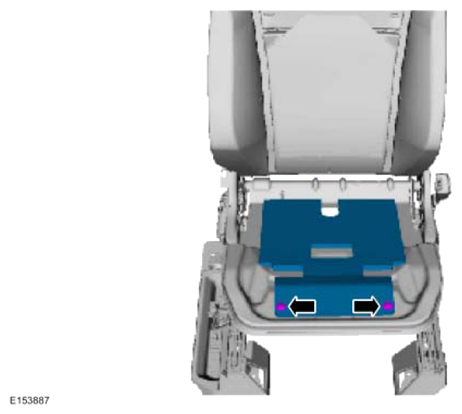

  14. G08410239

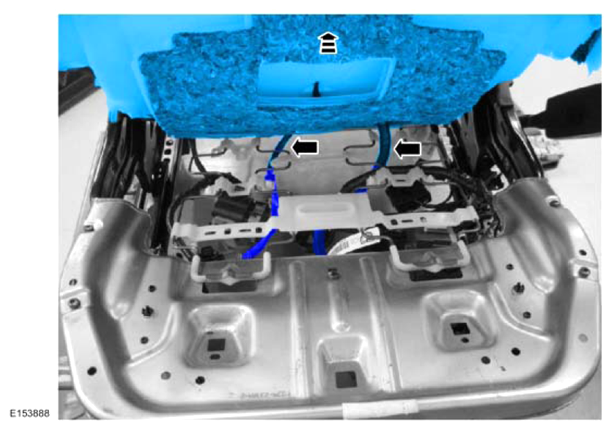

  15. NOTE: Note the location of the OCS  hose and heater mat pigtail (if equipped) as it passes through the seat springs for proper installation.
    G08410240

    All seats

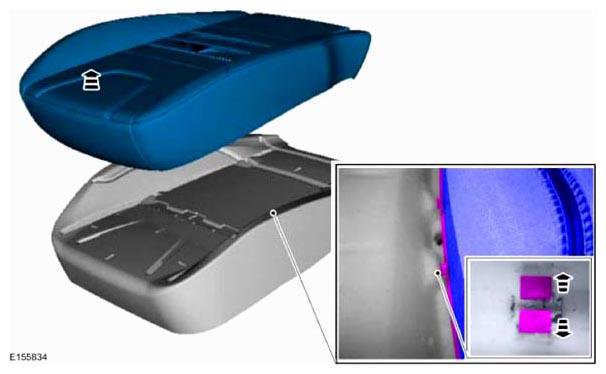

  16. G08638812
