Front Seat Backrest: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: FRONT SEAT  .

    Manual seat

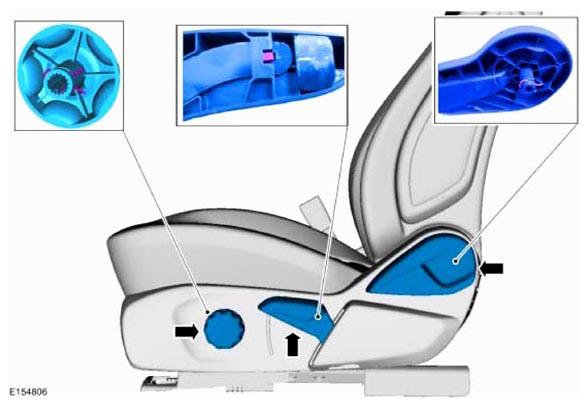

  2. G08638766

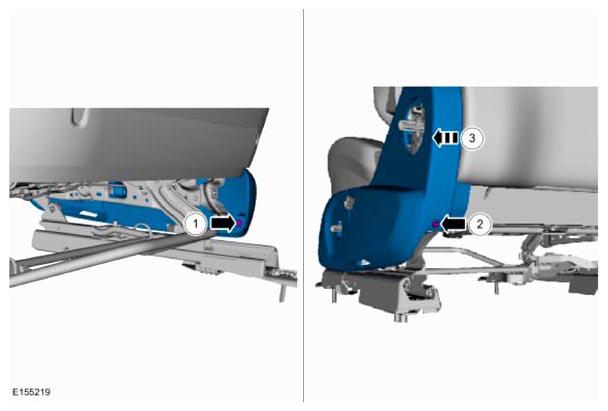

  3. G08638767

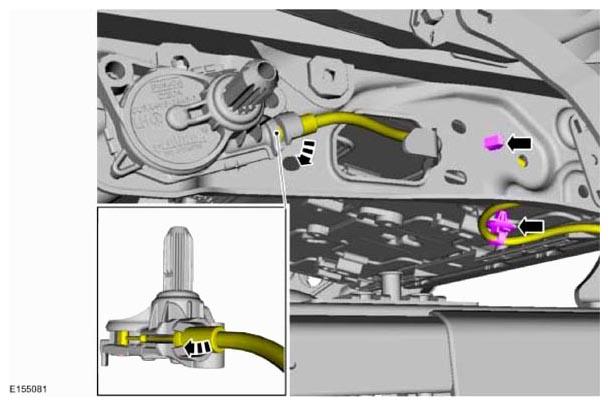

  4. G08638768

    Power seat

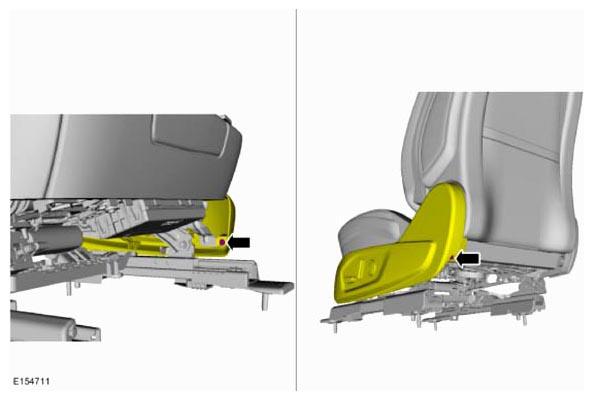

  5. G08638754

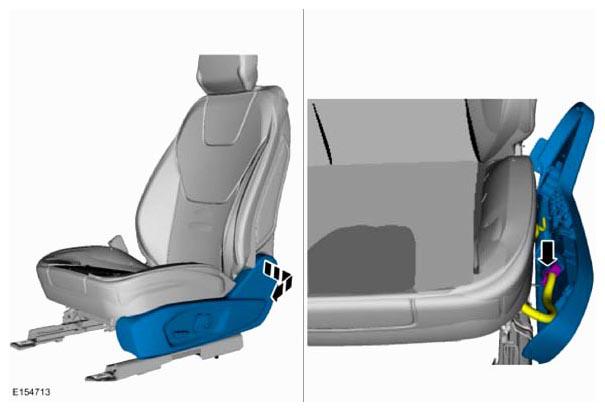

  6. G08638770

    All seats

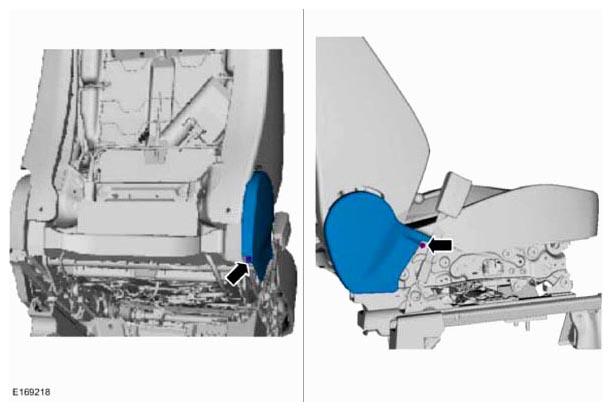

  7. G08638771
  8. NOTE: Vehicles with power and heated seats shown in illustration, all others similar.

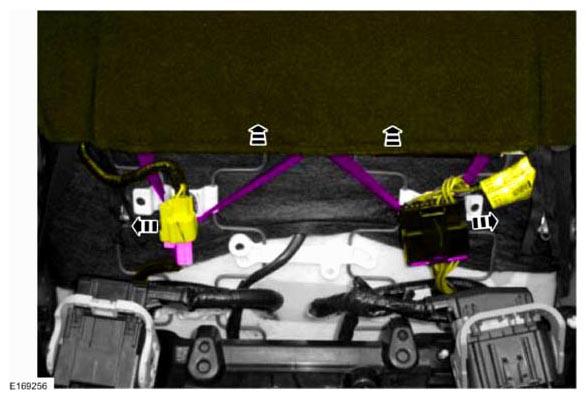

    G08638772

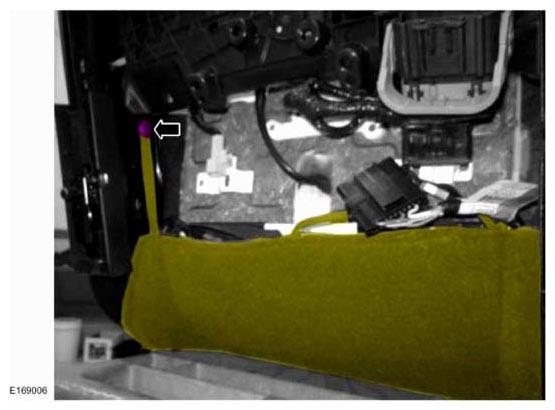

  9. On both sides.
    G08638773

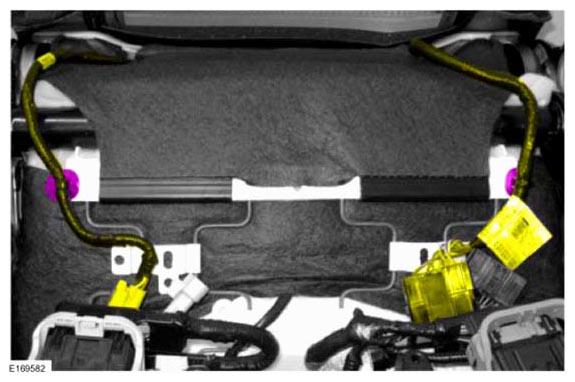

  10. G08638774
  11. Torque  : 45 Nm

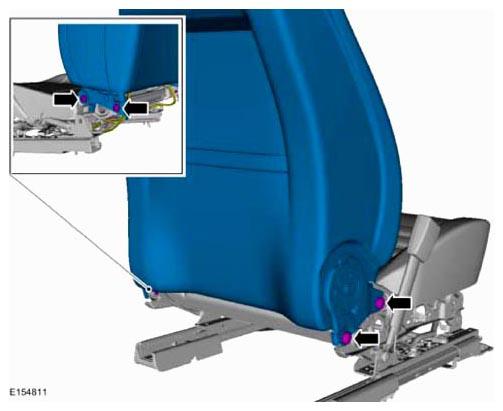

    G08638775
