Description and Operation
>>
Parking Aid - Component Location
>>

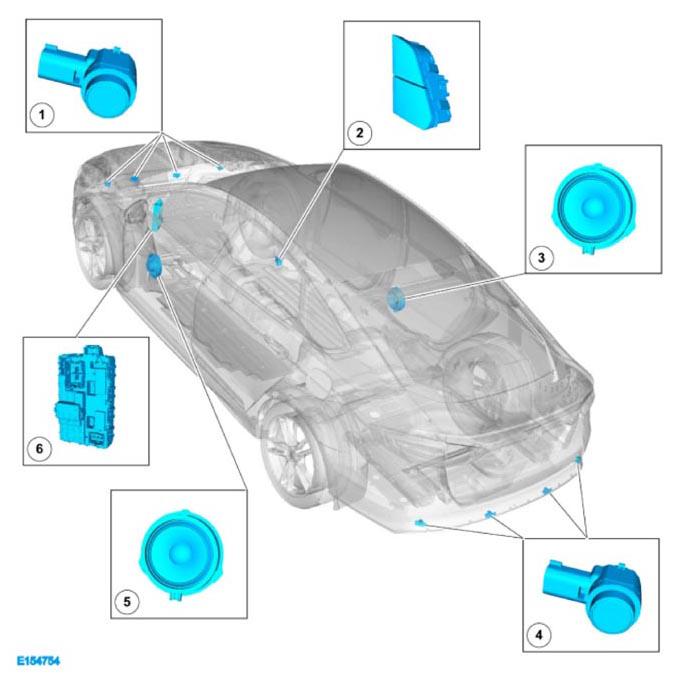

Component Location, Parking Aid - Audible
Component Location, Parking Aid - Audible
Item
Description
1
Front parking aid sensors
2
Parking aid switch (if equipped)
3
Rear speakers (part of audio system)
4
Rear parking aid sensors
5
Front speakers (part of audio system)
6
Parking Aid Module (PAM) (integral to the
BCM
