Hood Latch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: FRONT BUMPER COVER .

    Left Hand (LH)

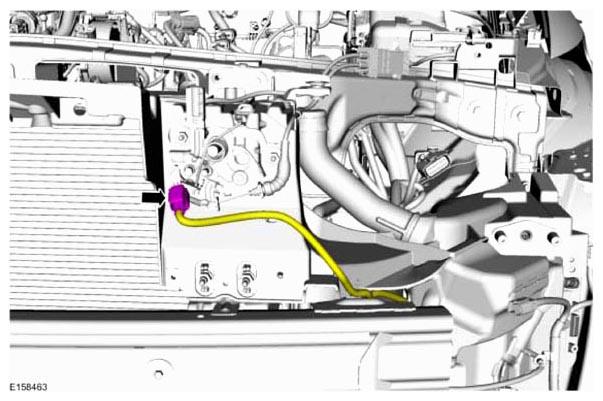

  2. G08638905
  3. Torque  : 9 Nm

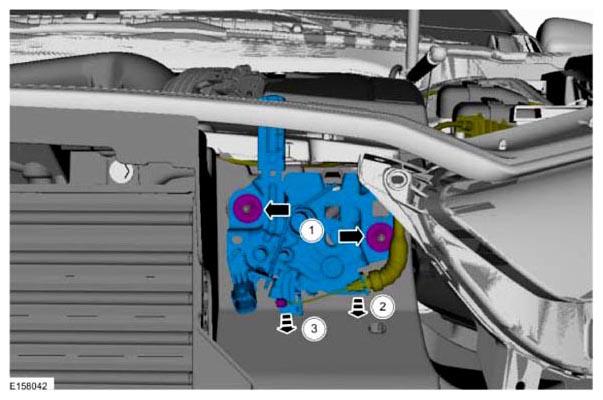

    G08638906

    Right Hand (RH)

  4. Torque  : 9 Nm

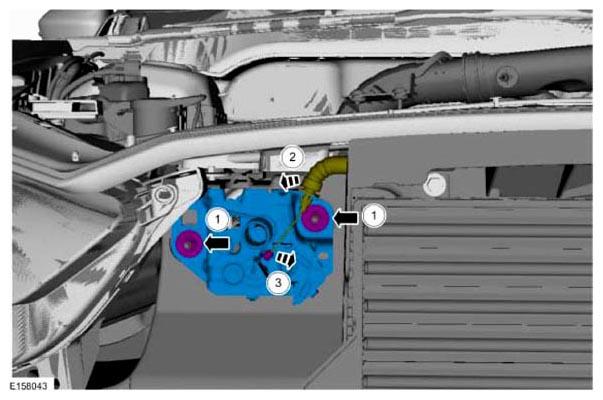

    G08638907
