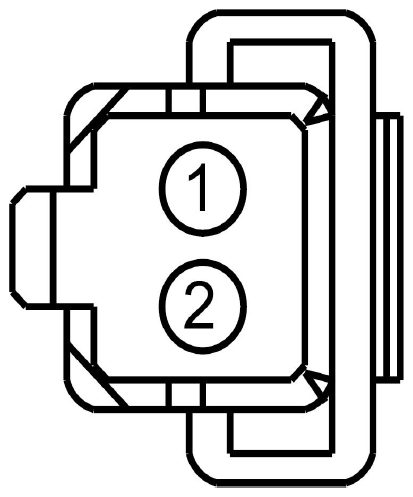

Vanity Mirror Lamp RH Connector End View (C906)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
| 2 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | MKZ |
| 2 | GD382 (BK-GY) | 22 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | Fusion |
| Available Pigtail Kits | |
|---|---|

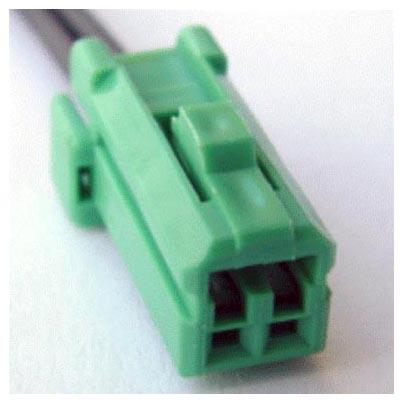

| Pigtail Kit Part Number WPT-1197 | Service Part Number: 3U2Z-14S411-PFB Gauge: 20 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|

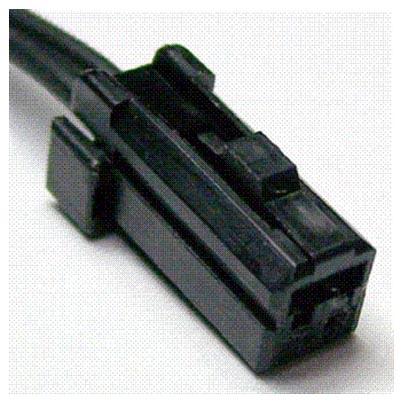

| Pigtail Kit Part Number WPT-479 | Service Part Number: 3U2Z-14S411-PFA Gauge: 20 Pin material: Tin Cavities: 2 Vehicle Uses
|
