Splice Block 4 Connector End View (C836)

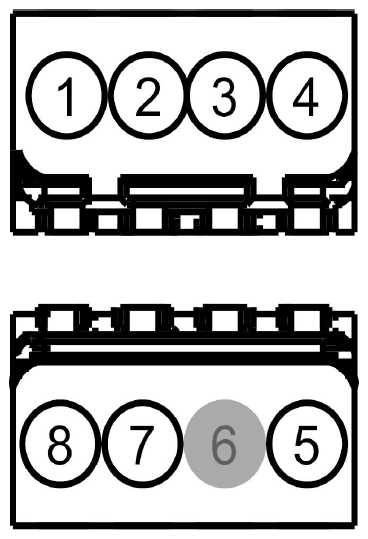

Fig 1: Identifying Splice Block 4 Connector End View (C836)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL70 (WH-BN)	22	SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK	Fusion
1	RPW09 (BN-WH)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	MKZ
2	RPW09 (BN-WH)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	MKZ
3	CPL70 (WH-BN)	22	SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK	MKZ
3	RPW09 (BN-WH)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Fusion
4	CPL70 (WH-BN)	26	SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK	MKZ
4	RPW09 (BN)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Fusion
5	CPL70 (WH)	26	SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK	Fusion
5	RPW09 (BN-WH)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	MKZ
6	*	*	Not Used
7	CPL70 (WH-BN)	26	SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK	MKZ
8	RPW09 (BN)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Fusion
