Seat Position Sensor, Driver Connector End View (C356)

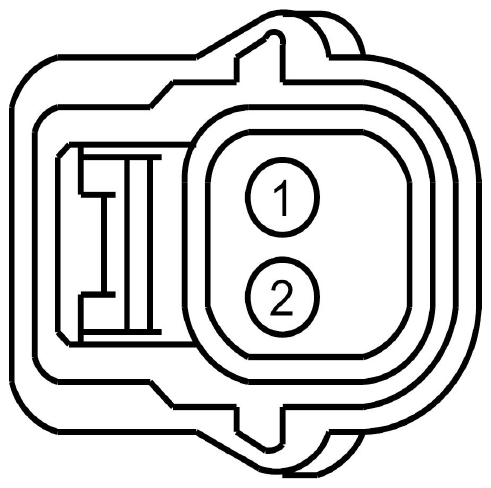

Fig 1: Identifying Seat Position Sensor, Driver Connector End View (C356)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD901 (BK)	20	GROUND - PASSENGER SEAT # RESTRAINTS CLEAN
2	VR215 (YE-VT)	20	SENSOR - SEAT TRACK POSITION DRIVER

Available Pigtail Kits
Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC  Gauge: 20  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
