Reversing Lamp LH Connector End View (C487)

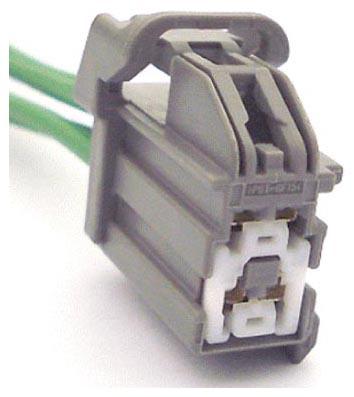

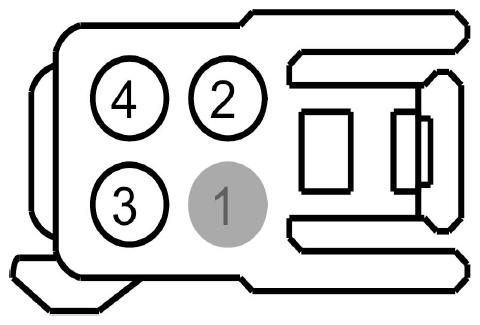

Fig 1: Identifying Reversing Lamp LH Connector End View (C487)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	CLS05 (BU-GY)	22	CTRL MOD. - PARK
3	CLS28 (BU-WH)	22	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)
4	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT

Available Pigtail Kits
Pigtail Kit Part Number WPT-977	Service Part Number: 3U2Z-14S411-LUB  Gauge: 14  Pin material: Silver  Cavities: 4  Vehicle Uses Element - Heated Seat Lamp - Ambient Lighting Lamp - Courtesy - Footwell Mirror - Sideview Motor - Adjustable Pedal Motor - Steering Column Adjust Solenoid - Brake Shift Park Interlock Speaker - Subwoofer Switch - Gear Shift Select/Neutral Safety Transceiver - Passive Anti-Theft (PATS)
