Rear Door Window Regulator Motor RH Connector End View (C803)

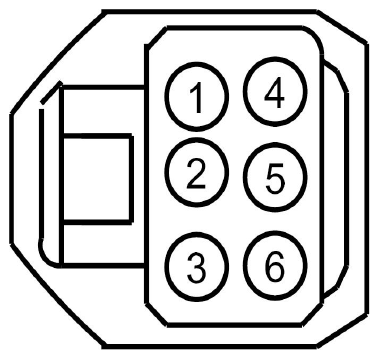

Fig 1: Identifying Rear Door Window Regulator Motor RH Connector End View (C803)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CPW53 (YE-OG)	12	CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN
2	VPW56 (BN-BU)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSOR 1
3	LPW54 (BN-GN)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS +
4	CPW52 (VT-WH)	12	CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP
5	VPW57 (BU-GY)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSOR 2
6	RPW55 (GY-VT)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1344	Service Part Number: DU2Z-14S411-AEA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear
