Rear Door Window Regulator Motor LH Connector End View (C703)

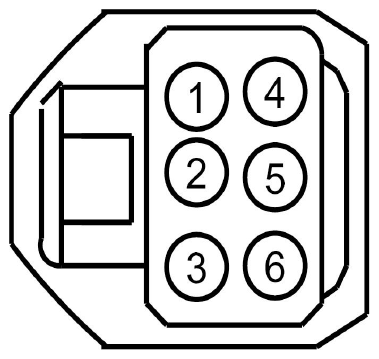

Fig 1: Identifying Rear Door Window Regulator Motor LH Connector End View (C703)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CPW47 (VT-OG)	12	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN
2	VPW50 (GN-OG)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSOR 1
3	LPW48 (YE-GY)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS +
4	CPW46 (GY-BN)	12	CTRL MOD. - WINDOW MOTOR REAR LEFT # UP
5	VPW51 (BN-YE)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSOR 2
6	RPW49 (BU-BN)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1344	Service Part Number: DU2Z-14S411-AEA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear
