Rear Door Window Control Switch RH Connector End View (C801)

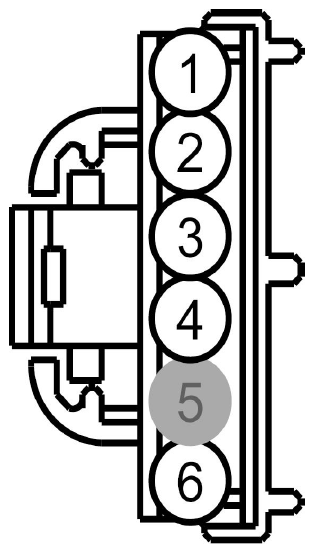

Fig 1: Identifying Rear Door Window Control Switch RH Connector End View (C801)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPW09 (BN-WH)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN
2	CPW24 (WH-VT)	26	SWITCH - POWER WINDOW REAR RIGHT # UP	MKZ
2	CPW24 (WH)	26	SWITCH - POWER WINDOW REAR RIGHT # UP	Fusion
3	CPW23 (GY)	26	SWITCH - POWER WINDOW REAR RIGHT # DOWN
4	CPW59 (VT-BN)	26	SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT	MKZ
4	CPW59 (VT)	26	SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT	Fusion
5	*	*	Not Used
6	RPW09 (BN)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Fusion
6	RPW09 (BN-WH)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	MKZ

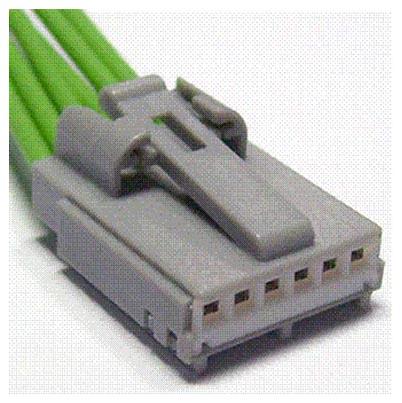

Available Pigtail Kits
Pigtail Kit Part Number WPT-1028	Service Part Number: 9U2Z-14S411-APA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear
