Rear Door Window Control Switch LH Connector End View (C701)

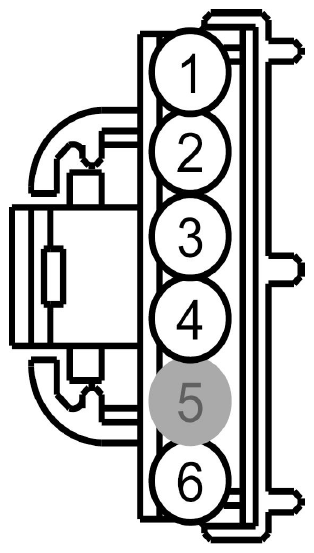

Fig 1: Identifying Rear Door Window Control Switch LH Connector End View (C701)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPW07 (GY-OG)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	MKZ
1	RPW07 (OG)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	Fusion
2	CPW22 (GN)	26	SWITCH - POWER WINDOW REAR LEFT # UP	Fusion
2	CPW22 (GN-VT)	26	SWITCH - POWER WINDOW REAR LEFT # UP	MKZ
3	CPW21 (BN)	26	SWITCH - POWER WINDOW REAR LEFT # DOWN	Fusion
4	CPW58 (YE)	26	SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT	Fusion
4	CPW58 (YE-OG)	26	SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT	MKZ
5	*	*	Not Used
6	RPW07 (GY-OG)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	MKZ
6	RPW07 (GY)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	Fusion

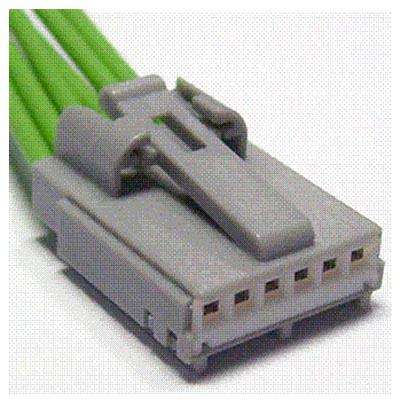

Available Pigtail Kits
Pigtail Kit Part Number WPT-1028	Service Part Number: 9U2Z-14S411-APA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear
