Rear Door Tweeter Speaker LH Connector End View (C730)

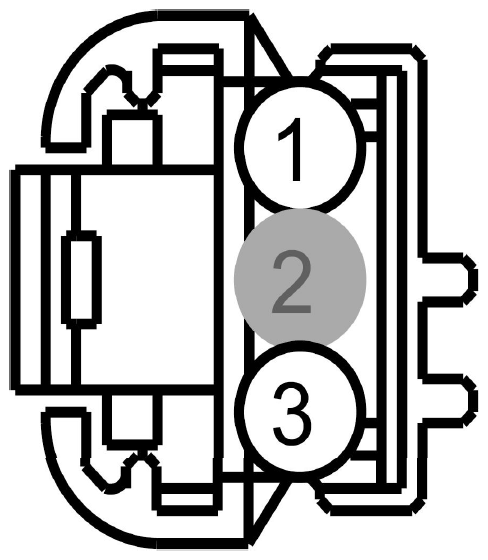

Fig 1: Identifying Rear Door Tweeter Speaker LH Connector End View (C730)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VME39 (GN-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER +
2	*	*	Not Used
3	RME39 (GY-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER -

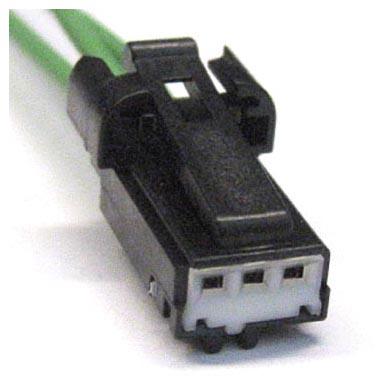

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
