Rear Door Speaker RH Connector End View (C835)

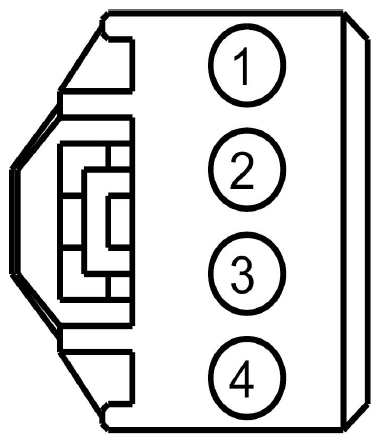

Fig 1: Identifying Rear Door Speaker RH Connector End View (C835)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME12 (BN-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) +
2	VME40 (BU-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER +
3	RME40 (VT-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER -
4	RME12 (BN-BU)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) -

Available Pigtail Kits
Pigtail Kit Part Number WPT-912	Service Part Number: 8U2Z-14S411-HA  Gauge: 14  Pin material: Tin  Cavities: 4  Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety
