Passenger Door Window Regulator Motor Connector End View (C646)

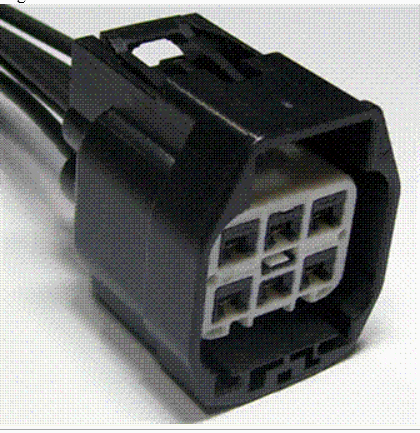

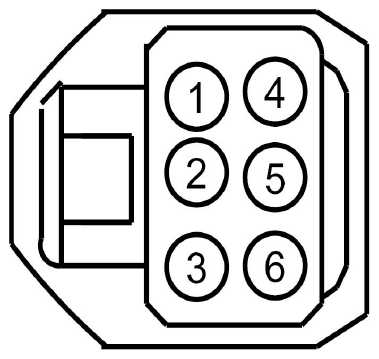

Fig 1: Identifying Passenger Door Window Regulator Motor Connector End View (C646)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CPW41 (GY-YE)	12	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN
2	VPW44 (BU-OG)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1
3	LPW42 (VT-GY)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS
4	CPW40 (WH)	12	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP
5	VPW45 (GN-WH)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2
6	RPW43 (YE-GN)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS

Available Pigtail Kits
Pigtail Kit Part Number WPT-1344	Service Part Number: DU2Z-14S411-AEA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear
