Manifold Absolute Pressure (Map) Sensor Connector End View (C1087)

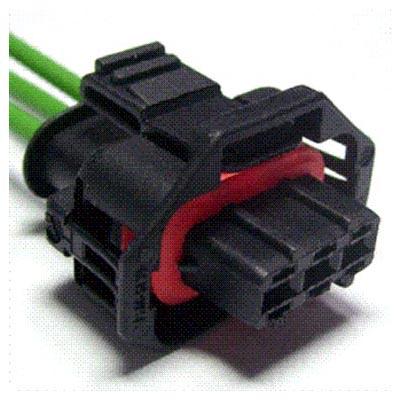

Fig 1: Identifying Manifold Absolute Pressure Sensor Connector End View (C1087)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	2.0L
2	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	2.0L
3	VE803 (BU-GN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP)	2.0L

Available Pigtail Kits
Pigtail Kit Part Number WPT-1099	Service Part Number: AU2Z-14S411-BBA  Gauge: 14  Pin material: Silver  Cavities: 3  Vehicle Uses Fuel Injector Pump - Fuel Injection Sensor - Manifold Absolute Pressure (MAP) Solenoid - Fuel Volume Regulator Control
