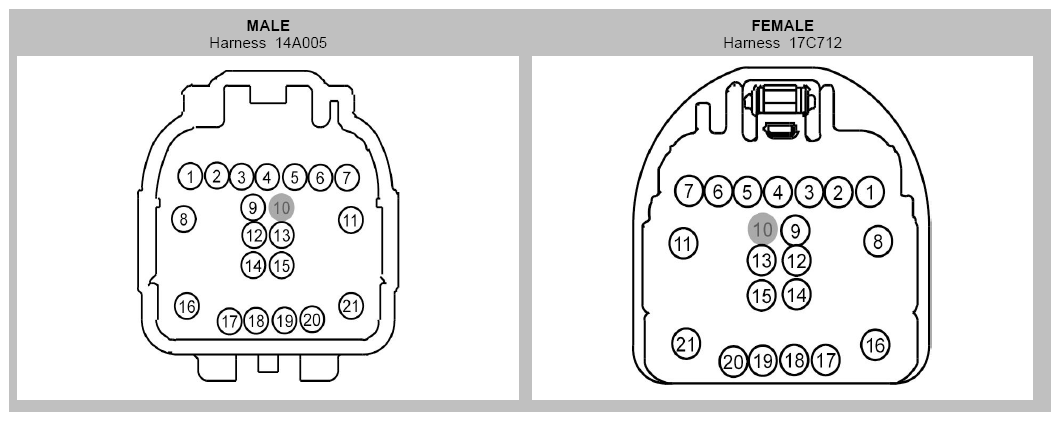

Inline Connector End View (C900)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VLN04 (VT-GY) |
22 |
MKZ |
| 2 |
VMEA0 (BU) |
26 |
17C712 - MKZ |
| 2 |
VMEA0 (BU-GN) |
22 |
14A005 - MKZ |
| 3 |
RMEA0 (WH) |
26 |
17C712 - MKZ |
| 3 |
RMEA0 (WH-OG) |
22 |
14A005 - MKZ |
| 4 |
VME57 (VT) |
26 |
17C712 - MKZ |
| 4 |
VME57 (YE-VT) |
22 |
14A005 - MKZ |
| 5 |
RME57 (BU) |
26 |
17C712 - MKZ |
| 5 |
RME57 (BU-BN) |
22 |
14A005 - MKZ |
| 6 |
VDN05 (YE-GY) |
22 |
MKZ |
| 7 |
CRW13 (GN) |
18 |
14A005 - MKZ |
| 7 |
CRW13 (GN) |
20 |
17C712 - MKZ |
| 8 |
CBP36 (BU-BN) |
14 |
14A005 - Fusion |
| 8 |
CBP36 (YE-GY) |
20 |
17C712 - Fusion |
| 8 |
VLN33 (GY-VT) |
22 |
MKZ |
| 9 |
LRD12 (BU) |
26 |
17C712 - Fusion |
| 9 |
LRD12 (BU-GY) |
20 |
14A005 - MKZ |
| 9 |
LRD12 (BU-GY) |
22 |
17C712 - MKZ |
| 10 |
* |
* |
17C712 |
| 10 |
VDN05 (YE-GY) |
22 |
14A005 - Fusion |
| 11 |
CBP36 (BU-BN) |
20 |
14A005 - MKZ |
| 11 |
CBP36 (YE-GY) |
20 |
17C712 - MKZ |
| 11 |
GD383 (BK-WH) |
16 |
14A005 - Fusion |
| 11 |
GD383 (BK-WH) |
20 |
17C712 - Fusion |
| 12 |
CLN68 (BU-BN) |
22 |
MKZ |
| 12 |
VDB25 (GN) |
26 |
17C712 - Fusion |
| 12 |
VDB25 (GN-WH) |
26 |
14A005 - Fusion |
| 13 |
VDB26 (GY) |
26 |
Fusion |
| 14 |
CLN69 (GY-YE) |
22 |
MKZ |
| 15 |
RRD12 (BN) |
20 |
14A005 - MKZ |
| 15 |
RRD12 (BN) |
22 |
17C712 - MKZ |
| 16 |
CLN09 (YE-GN) |
22 |
17C712 - Fusion |
| 16 |
CLN09 (YE-GN) |
22 |
14A005 - MKZ |
| 16 |
CRW13 (GN) |
20 |
14A005 - Fusion |
| 17 |
VDB25 (GN) |
26 |
17C712 - Fusion |
| 17 |
VDB25 (GN-OG) |
20 |
14A005 - Fusion |
| 17 |
VMM23 (BN) |
26 |
14A005 - MKZ |
| 17 |
VMM23 (BN-VT) |
22 |
17C712 - MKZ |
| 18 |
RMM23 (WH) |
26 |
14A005 - MKZ |
| 18 |
RMM23 (WH-GN) |
22 |
17C712 - MKZ |
| 18 |
VDB26 (GY) |
26 |
17C712 - Fusion |
| 18 |
VDB26 (GY-BU) |
20 |
14A005 - Fusion |
| 19 |
CLS28 (BU-WH) |
20 |
14A005 - MKZ |
| 19 |
CLS28 (BU-WH) |
22 |
17C712 - MKZ |
| 19 |
LRD12 (BU) |
22 |
17C712 - Fusion |
| 19 |
LRD12 (BU) |
26 |
17C712 - MKZ |
| 19 |
LRD12 (BU-GY) |
22 |
14A005 - Fusion |
| 20 |
GD382 (BK-GY) |
18 |
14A005 - MKZ |
| 20 |
RRD12 (BN) |
22 |
14A005 - Fusion |
| 20 |
RRD12 (BN) |
26 |
17C712 - Fusion |
| 21 |
CLS28 (BU-WH) |
22 |
Fusion |
| 21 |
GD383 (BK-WH) |
16 |
14A005 - MKZ |
| 21 |
GD383 (BK-WH) |
22 |
17C712 - MKZ |
