Inline Connector End View (C408)

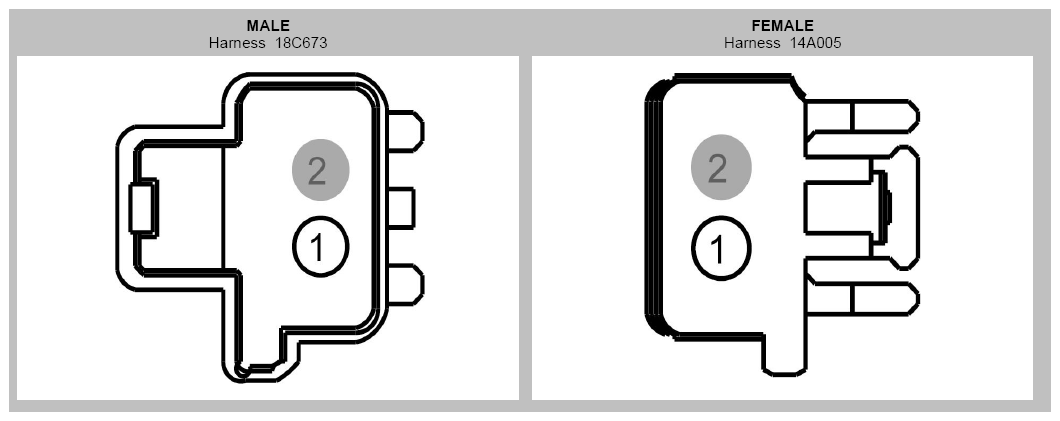

Fig 1: Identifying Inline Connector End View (C408)
G08755452Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 CRD06 (BN-YE) 10
2 * * 18C673
2 GD347 (BK-VT) 10 14A005
Available Pigtail Kits
Pigtail Kit Part Number WPT-879

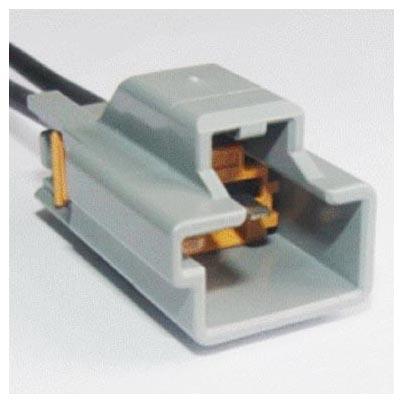

G08755453
 Service Part Number: 6U2Z-14S411-PA
Gauge: 12
Pin material: Tin
Cavities: 2
Vehicle Uses:
  • Module - Liftgate
  • Motor - Air Suspension Compressor
  • Speaker - Front
  • Switch - Heated Seat - LH - Rear
Pigtail Kit Part Number WPT-1149

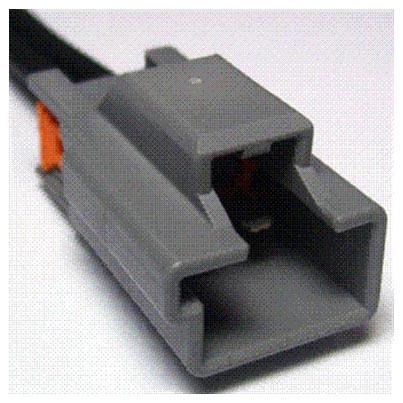

G08755454
 Service Part Number: 6U2Z-14S411-PB
Gauge: 10
Pin material: Tin
Cavities: 2
Vehicle Uses:
  • Element - Heated Windshield
  • Motor - Convertible Top
  • Motor - Power Window - LH - Rear
  • Motor - Power Window - RH - Rear
  • Motor - Seat Lumbar
  • Switch - Heater A/C Blower (Rear)
  • Terminal - Rear Window Defroster Grid
