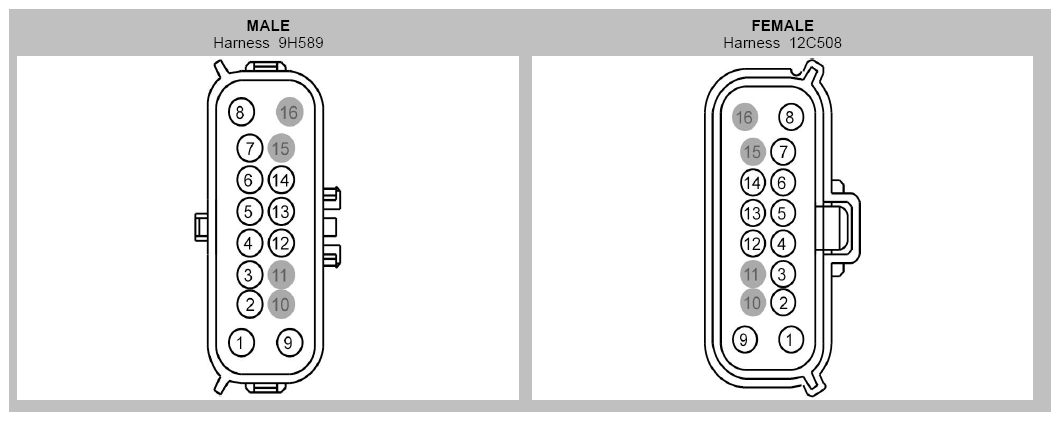

Inline Connector End View (C1033)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CE205 (GN-BU) |
16 |
12C508 |
| 1 |
CE205 (GN-BU) |
18 |
9H589 |
| 2 |
RE323 (WH-BN) |
18 |
12C508 |
| 2 |
RE323 (WH-BN) |
20 |
9H589 |
| 3 |
VE801 (VT-OG) |
18 |
12C508 |
| 3 |
VE801 (VT-OG) |
20 |
9H589 |
| 4 |
CE206 (GY-YE) |
16 |
12C508 |
| 4 |
CE206 (GY-YE) |
18 |
9H589 |
| 5 |
CE207 (VT-GY) |
16 |
12C508 |
| 5 |
CE207 (VT-GY) |
18 |
9H589 |
| 6 |
CE208 (YE-OG) |
16 |
12C508 |
| 6 |
CE208 (YE-OG) |
18 |
9H589 |
| 7 |
RE324 (BN-GN) |
18 |
12C508 |
| 7 |
RE324 (BN-GN) |
20 |
9H589 |
| 8 |
VE802 (BN-BU) |
18 |
12C508 |
| 8 |
VE802 (BN-BU) |
20 |
9H589 |
| 9 |
RE205 (YE-BU) |
16 |
12C508 |
| 9 |
RE205 (YE-BU) |
18 |
9H589 |
| 10 |
* |
* |
|
| 11 |
* |
* |
|
| 12 |
RE206 (BU-OG) |
16 |
12C508 |
| 12 |
RE206 (BU-OG) |
18 |
9H589 |
| 13 |
RE207 (GN-VT) |
16 |
12C508 |
| 13 |
RE207 (GN-VT) |
18 |
9H589 |
| 14 |
RE208 (BU) |
16 |
12C508 |
| 14 |
RE208 (BU) |
18 |
9H589 |
| 15 |
* |
* |
|
| 16 |
* |
* |
|
