High Mounted STOPLAMP Connector End View (C475)

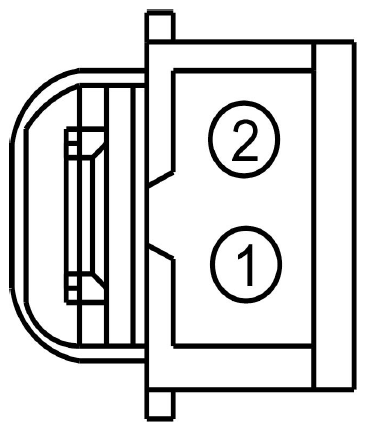

Fig 1: Identifying High Mounted Stoplamp Connector End View (C475)
G08755472Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CLS17 (YE-GY) 22 CTRL MOD. - STOP HIGH MOUNT
2 GD313 (BK-GN) 22 GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT
