Height Sensor, Right Front Connector End View (C1151)

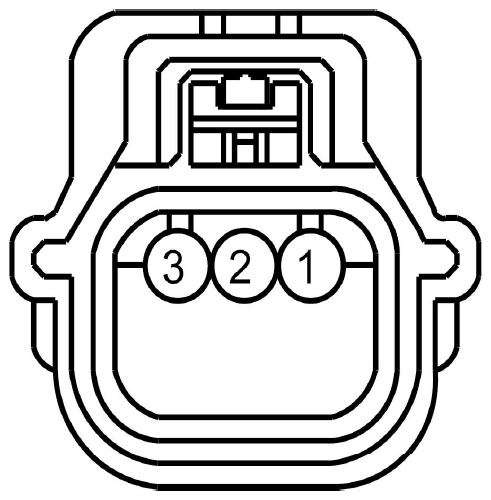

Fig 1: Identifying Height Sensor Right Front Connector End View (C1151)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCD11 (GY-VT)	18	SENSOR - SUSPENSION VERTICAL POSITION FRONT RIGHT
2	RCD02 (GN-BN)	18	CTRL MOD. - CDC # SENSORS -
3	LCD02 (YE-GN)	18	CTRL MOD. - CDC # SENSORS +

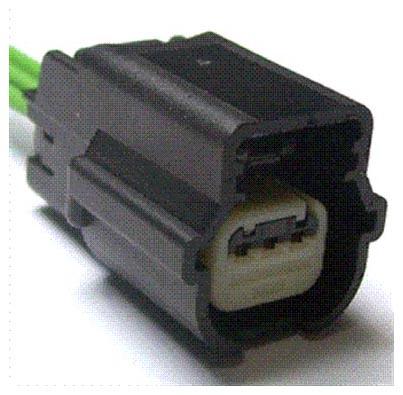

Available Pigtail Kits
Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling
Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB  Gauge: 20  Pin material: Silver  Cavities: 3  Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
