Front Door Tweeter Speaker RH Connector End View (C613)

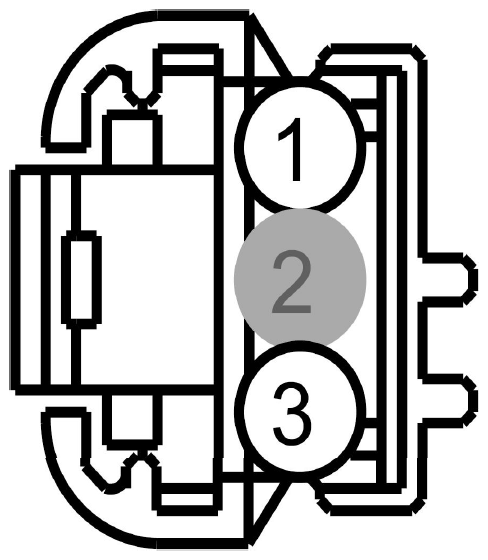

Fig 1: Identifying Front Door Tweeter Speaker RH Connector End View (C613)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VME11 (VT-OG)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER +
2	*	*	Not Used
3	RME11 (YE-OG)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER -

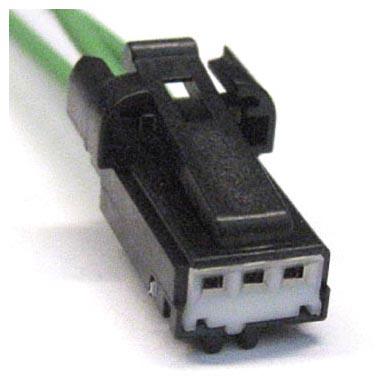

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
