Exterior Front Door Handle RH Connector End View (C634)

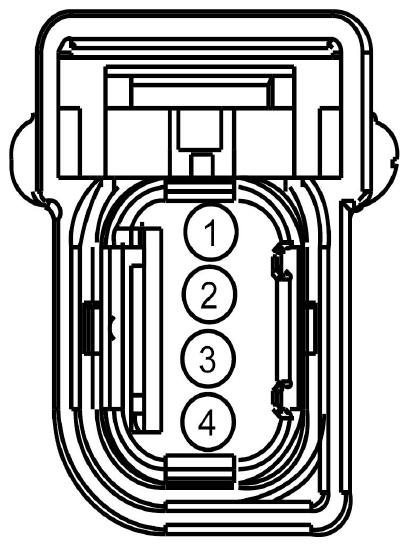

Fig 1: Identifying Exterior Front Door Handle RH Connector End View (C634)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK40 (WH)	22	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	Fusion
1	VPK40 (WH-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	MKZ
2	VPK02 (VT-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +	MKZ
2	VPK02 (VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +	Fusion
3	RPK02 (GY)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -	Fusion
3	RPK02 (GY-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -	MKZ
4	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	MKZ
4	RPK39 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE	Fusion
