Exterior Front Door Handle LH Connector End View (C543)

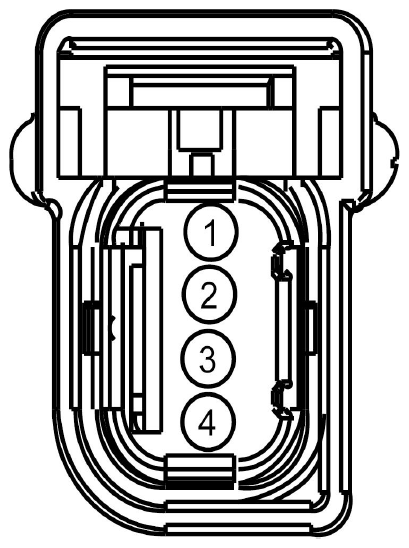

Fig 1: Identifying Exterior Front Door Handle LH Connector End View (C543)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK39 (GN)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	Fusion
1	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	MKZ
2	VPK01 (BN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER +	Fusion
2	VPK01 (BN-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER +	MKZ
3	RPK01 (WH-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER -	MKZ
3	RPK01 (WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER -	Fusion
4	RPK39 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE	Fusion
4	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	MKZ
