Exterior Door Handle, Left Rear Connector End View (C729)

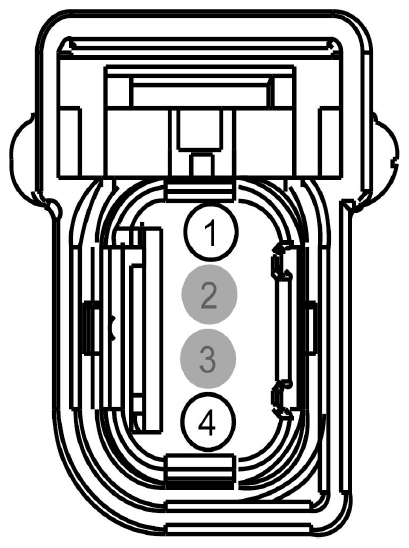

Fig 1: Identifying Exterior Door Handle, Left Rear Connector End View (C729)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	MKZ
1	VPK46 (GY)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	Fusion
2	*	*	Not Used
3	*	*	Not Used
4	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	MKZ
4	RPK39 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE	Fusion
