EGR Stepper Motor Connector End View (C1160)

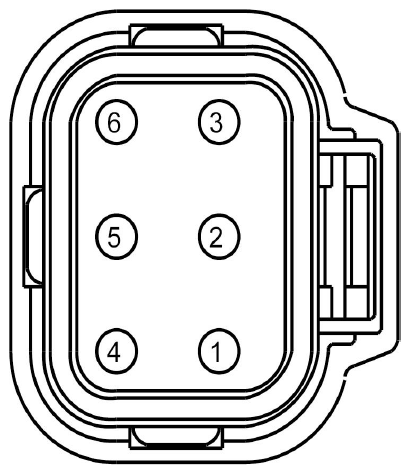

Fig 1: Identifying EGR Stepper Motor Connector End View (C1160)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CE101 (WH-VT)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+)
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)
3	CE102 (YE-BU)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-)
4	CE103 (BU-BN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC)
5	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)
6	CE104 (GN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC)

Available Pigtail Kits

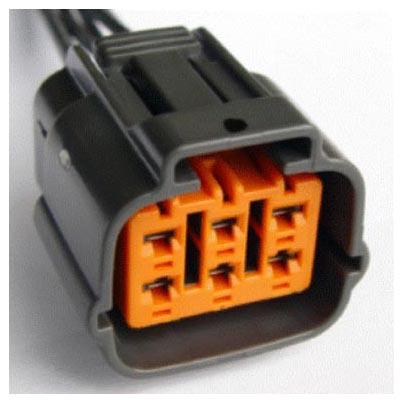

Pigtail Kit Part Number WPT-1115	Service Part Number: 3U2Z-14S411-BGAB Gauge: 14 Pin material: Tin (greased) Cavities: 6 Vehicle Uses Sensor - EGR Valve Position Valve - EGR

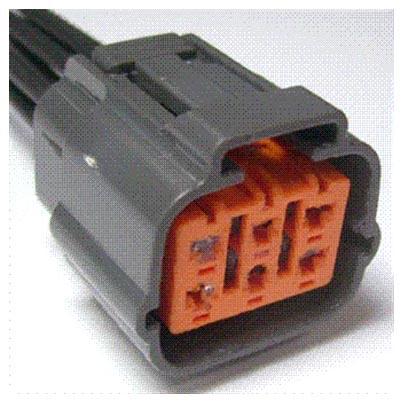

Pigtail Kit Part Number WPT-739	Service Part Number: 3U2Z-14S411-BGAA Gauge: 18 Pin material: Tin Cavities: 6 Vehicle Uses Relay - Trailer Tow
