Driver Side Airbag Connector End View (C367)

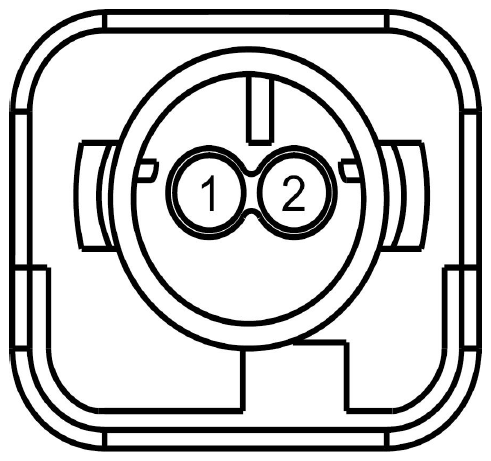

Fig 1: Identifying Driver Side Airbag Connector End View (C367)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR106 (YE-OG)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD +
2	RR106 (VT-GY)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD -

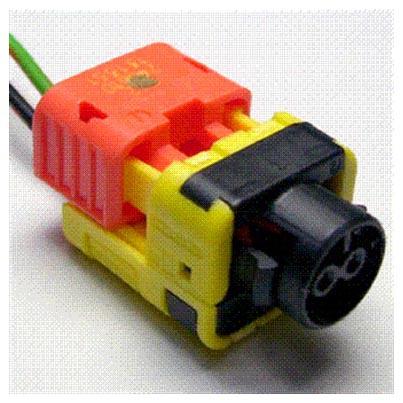

Available Pigtail Kits
Pigtail Kit Part Number WPT-1228	Service Part Number: BU2Z-14S411-BMA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain
