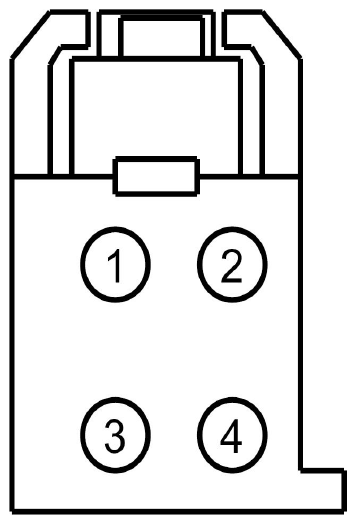

Driver Seat Rear Height Motor Connector End View (C363)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS04 (YE-OG) | 14 | CTRL MOD. - DRIVER SEAT HEIGHT REAR/PARALLEL DOWN | with memory |
| 1 | CPS26 (YE-BU) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN | |
| 2 | VPS11 (GN-BN) | 20 | SENSOR - DRIVER SEAT HEIGHT REAR/PARALLEL | with memory |
| 3 | CPS05 (BU-WH) | 14 | CTRL MOD. - DRIVER SEAT HEIGHT REAR/PARALLEL UP | with memory |
| 3 | CPS27 (BU-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | |
| 4 | RPS12 (GN-OG) | 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - | with memory |

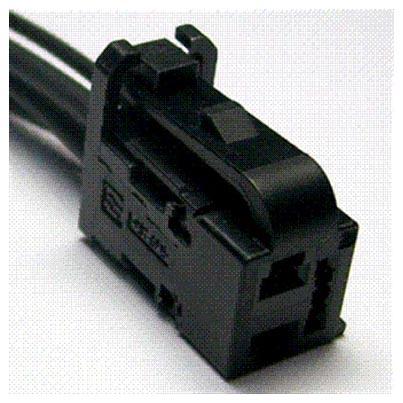

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1311 | Service Part Number: CU2Z-14S411-BAA Gauge: 20 Pin material: Tin Cavities: 4 Vehicle Uses
|
