Driver Seat Module (DSM) Connector End View (C341D)

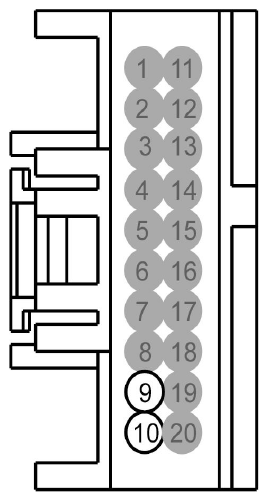

Fig 1: Identifying Driver Seat Module (DSM) Connector End View (C341D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
10	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used

Available Pigtail Kits

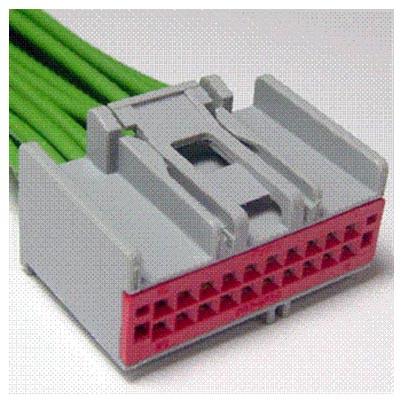

Pigtail Kit Part Number WPT-1199	Service Part Number: 3U2Z-14S411-FCB  Gauge: 18  Pin material: Silver  Cavities: 20  Vehicle Uses Instrument Cluster Module - Seat Memory Monitor - Video/DVD Radio - Amplifier Switch - Heater A/C Blower (Rear)

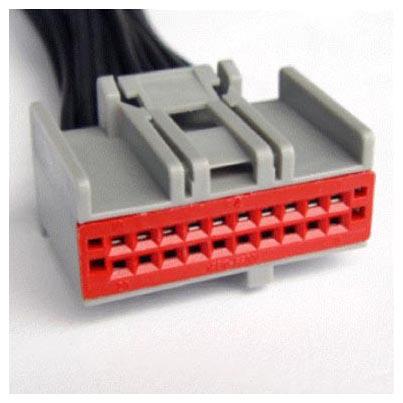

Pigtail Kit Part Number WPT-255	Service Part Number: 3U2Z-14S411-FCA  Gauge: 18  Pin material: Tin  Cavities: 20  Vehicle Uses Module - Seat Memory Monitor - Video/DVD Radio - Amplifier
