Driver Door Window Regulator Motor Connector End View (C518)

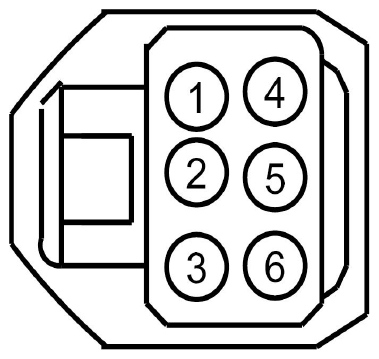

Fig 1: Identifying Driver Door Window Regulator Motor Connector End View (C518)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CPW35 (GN)	12	CTRL MOD. - WINDOW MOTOR DRIVER # DOWN
2	VPW38 (YE-BU)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1
3	LPW36 (WH-BN)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS
4	CPW34 (BU)	12	CTRL MOD. - WINDOW MOTOR DRIVER # UP
5	VPW39 (BU-WH)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2
6	RPW37 (VT-GN)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS

Available Pigtail Kits
Pigtail Kit Part Number WPT-1344	Service Part Number: DU2Z-14S411-AEA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear
