Cylinder Head Temperature (CHT) Sensor Connector End View (C1164)

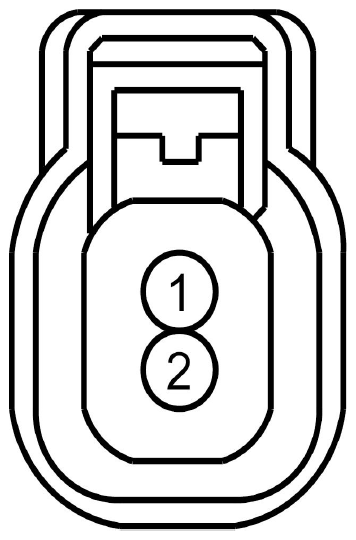

Fig 1: Identifying Cylinder Head Temperature (CHT) Sensor Connector End View (C1164)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE712 (BU-GY)	20	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)
2	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	3.7L

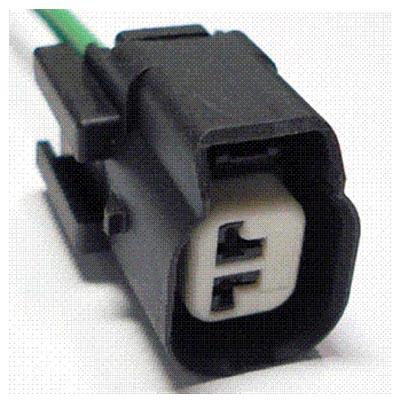

Available Pigtail Kits

Pigtail Kit Part Number WPT-984
